Slimbucker on Studiositar

SiTAR FAcToRY Posted on by

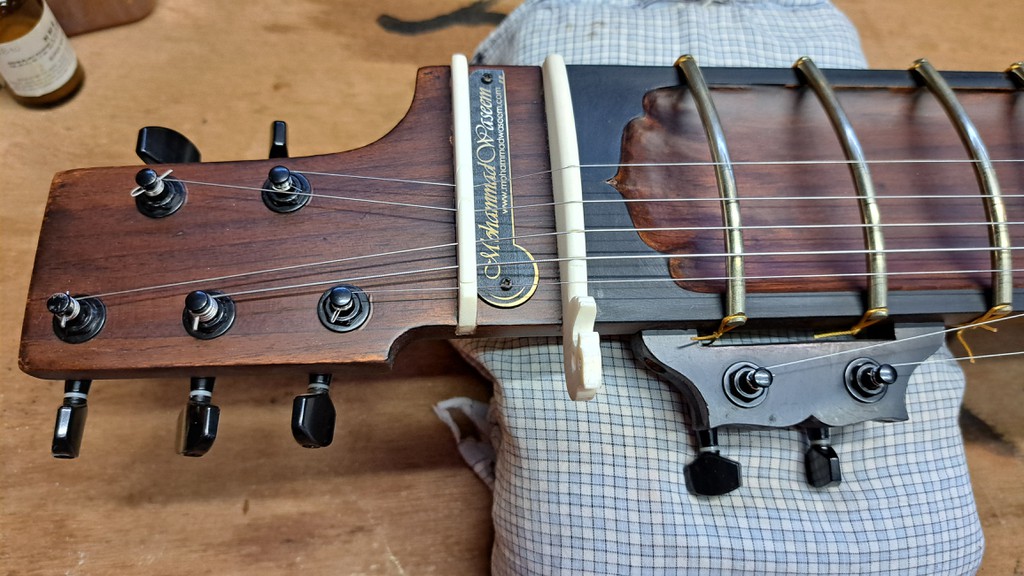

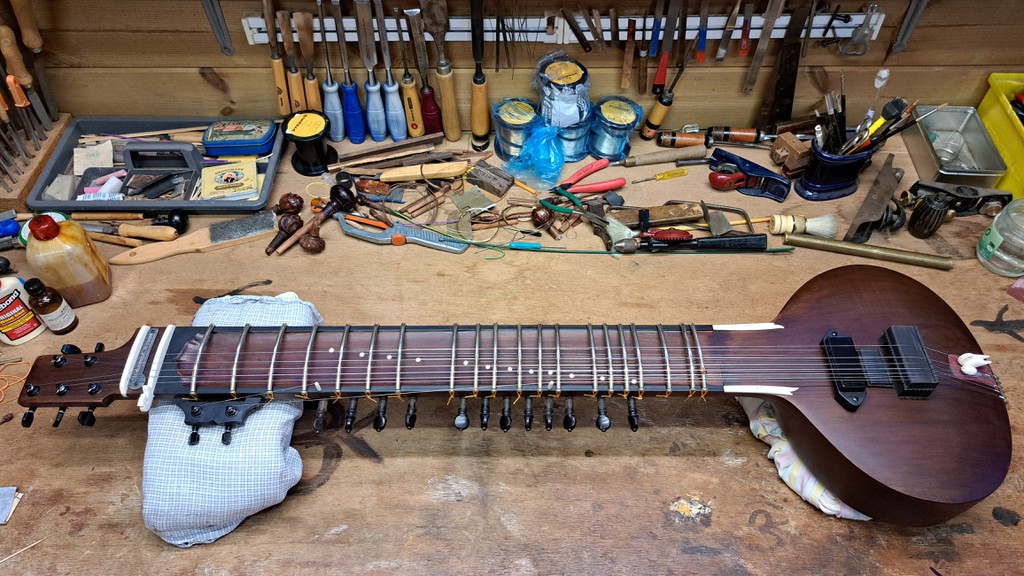

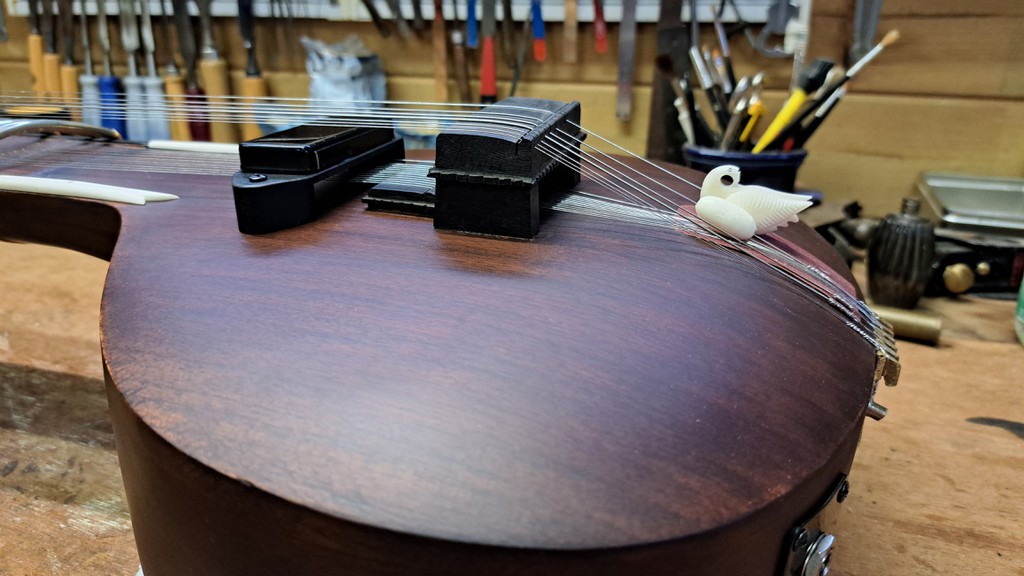

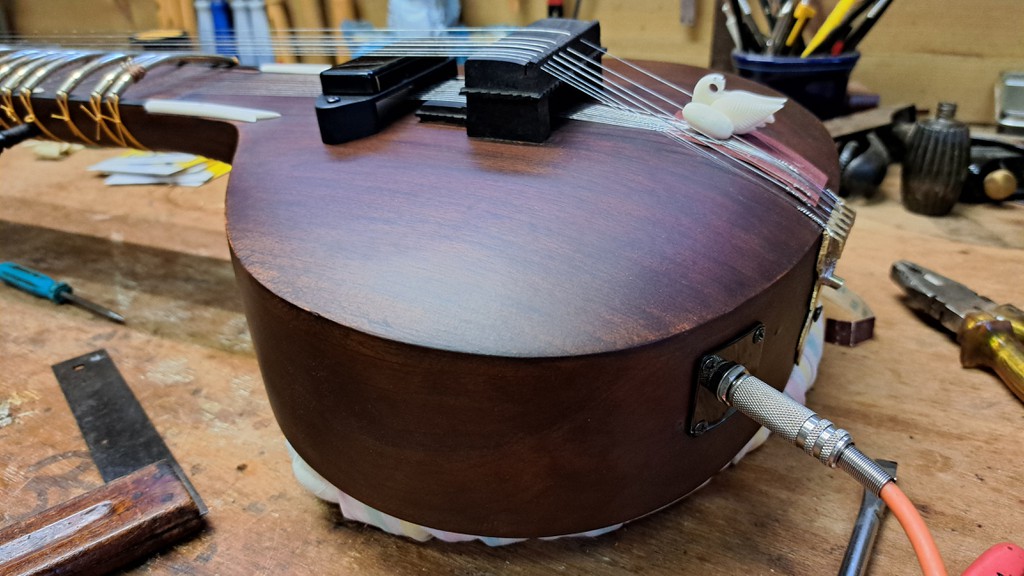

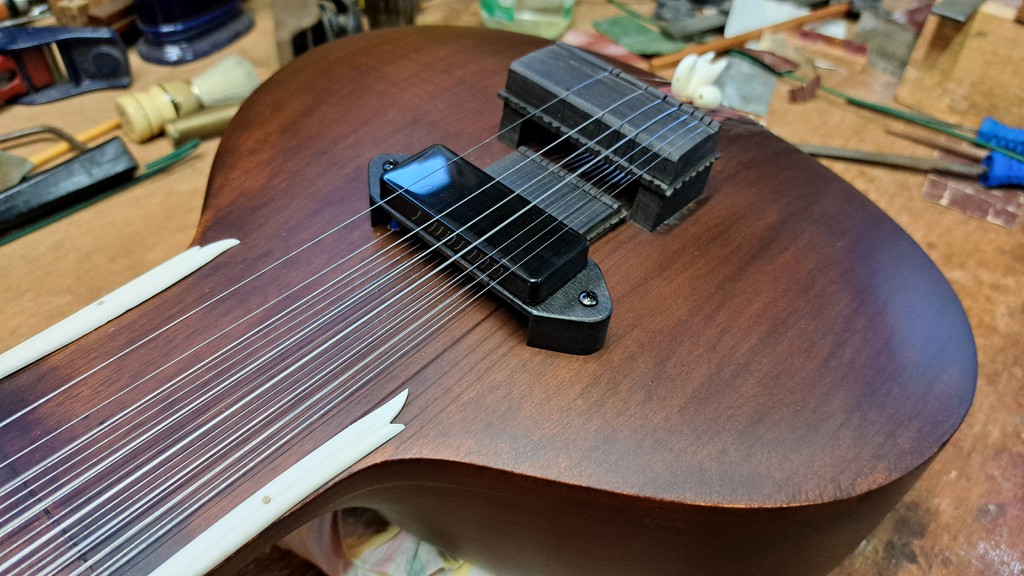

I mounted a Kent Armstrong Slimbucker™ Jazz guitar pickup on a beautiful new Waseem Maner vintage style studiositar. The sitar sounds very natural, with an extra warmth due to enhanced low frequency response typical for this kind of humbucker electro-magnetic pickups. The pickup is tilted to meet the cikaris and adjusted in height between the taravs and playing strings to balance the taravs response. All strings are Pyramid strings, and in particular Jora, Laraj & Kharaj are Nickel Flatwound strings.

Sound sample:

Play Slimbucker™ Jazz guitar pickup on AER Compact 60 amp





Specifications of the Slimbucker™ Jazz guitar pickup:

Alnico bar magnet / DC = 8K / humbucker made by Kent Armstrong.

Size :   0,95cm (.375”) thick – 6,8cm (2.68”) long – 2,8cm (1.10”) wide.



Strings made by Pyramid:

Silver plated steel Baj & Pancham .012 (0,30mm)
Silver plated steel Cikari & Taravs .009 (0,23mm)
Nickel flatwound Jora .018 (0,46mm)
Nickel flatwound Laraj .022 (0,56mm)
Nickel flatwound Kharaj .030 (0,76mm)

Ustad Ilyas Khan’s HR sitar restoration – Pt2

SiTAR FAcToRY Posted on by

Foto from left to right: Idris Khan – sitar, Ustad Ilyas Khan – sitar, Tadahiro Wakabayashi – tanpura.
Foto © T. Wakabayashi

This is the follow-up report to a project on the restoration of a special Hiren Roy sitar. Click here for the  first part. Below is the second part concerning the result:

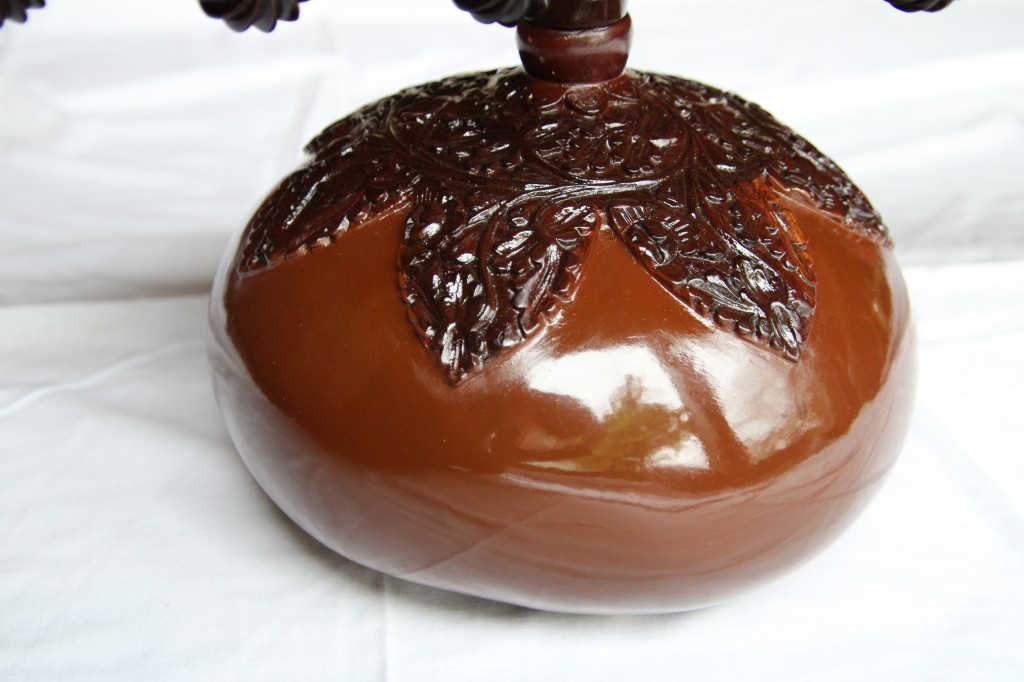

The original second tumba is missing. This is very unfortunate for a sitar that is around 60 years old. It is easy to see from the photos that this is a fairly large second tumba. Not surprising for sitar of this class. I myself do not have any tumbas in stock, nor can I make them just like that. But for some time now, I have been working regularly with Mohammad Waseem Maner, a young and talented sitar maker from Miraj. I asked him if he could then make a replica of this missing second tumba for us. “Yes. Sir I will do the needful” was his prompt reply and so it happened.

The new second tumba arrived just in time to still be mounted on the fully repaired instrument. And, Waseem did a sterling job. The cut-outs in the woodwork match those of the original perfectly.

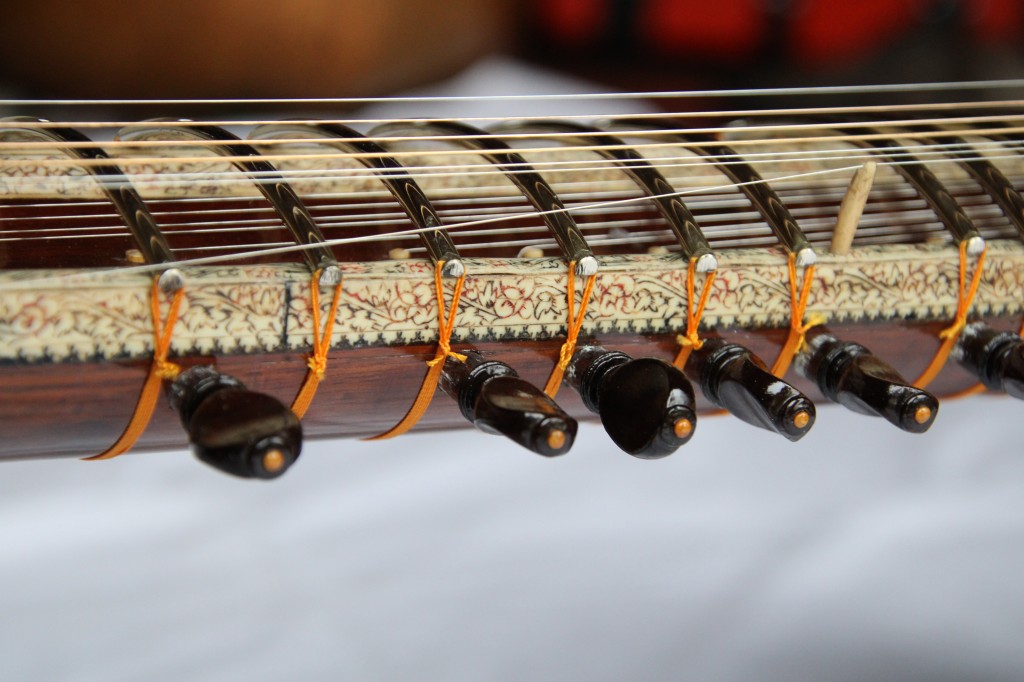

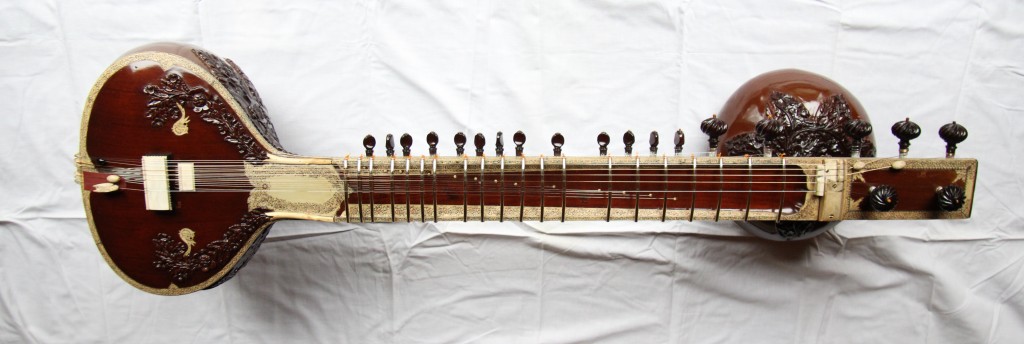

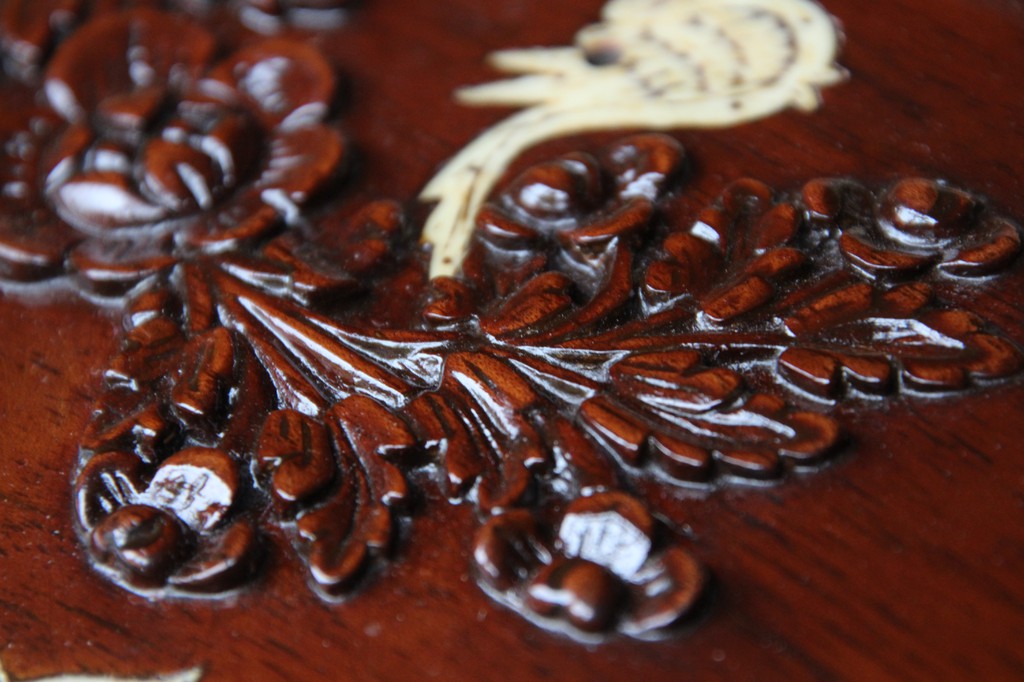

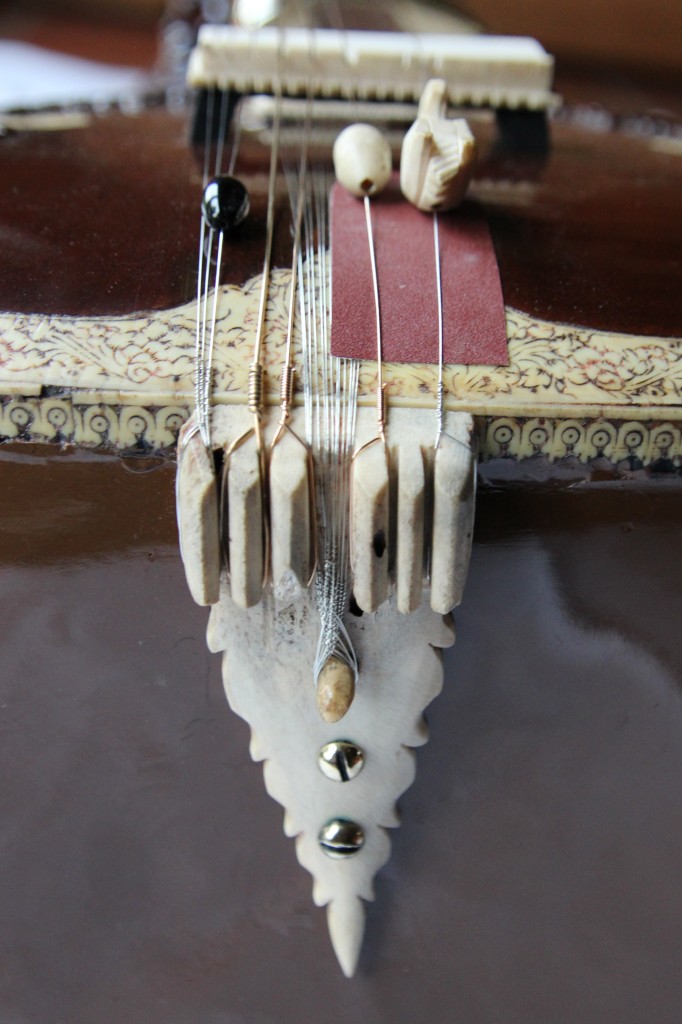

Following are some photos of the finished instrument.

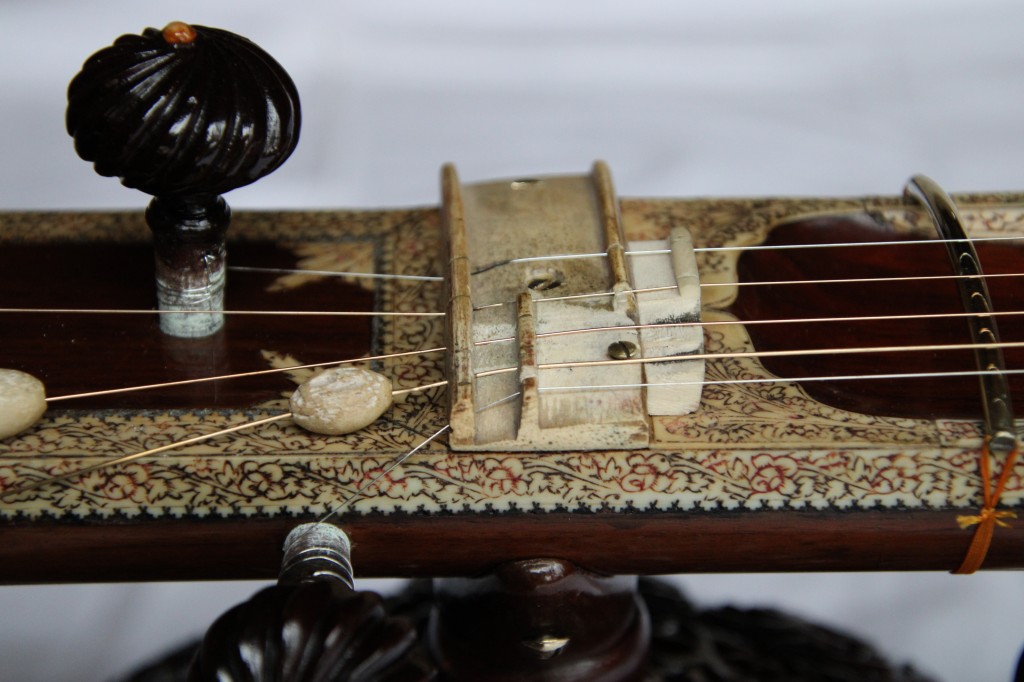

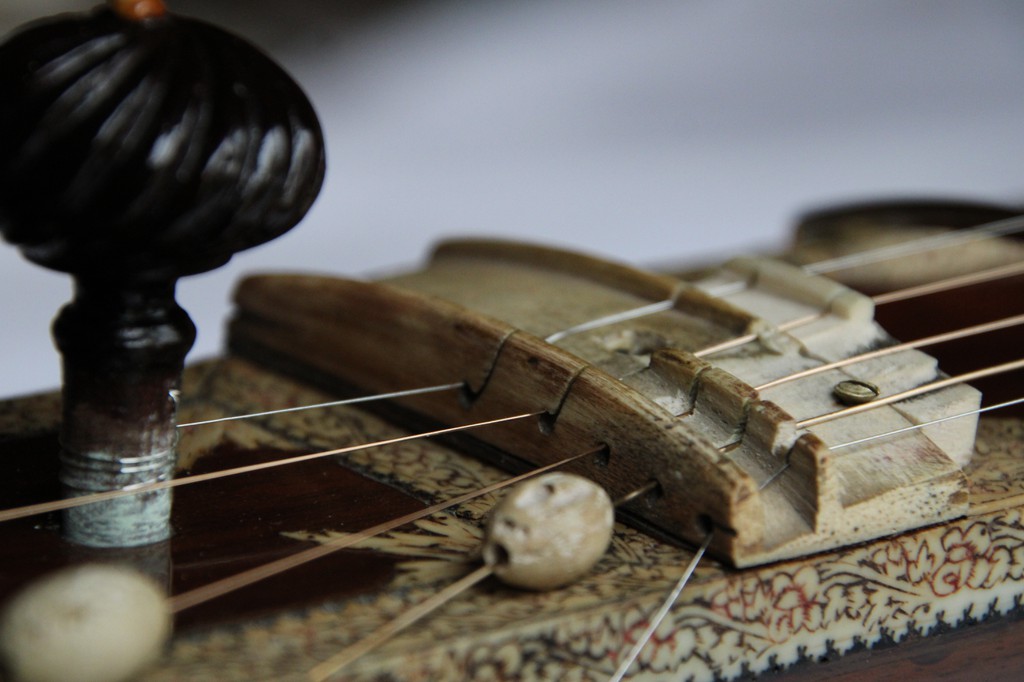

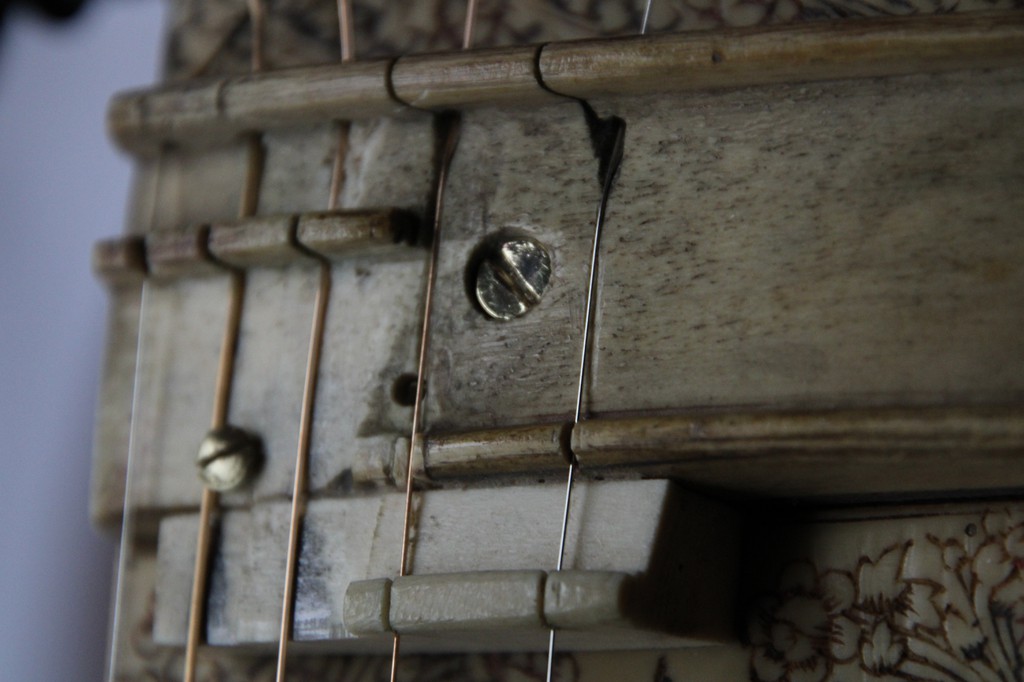

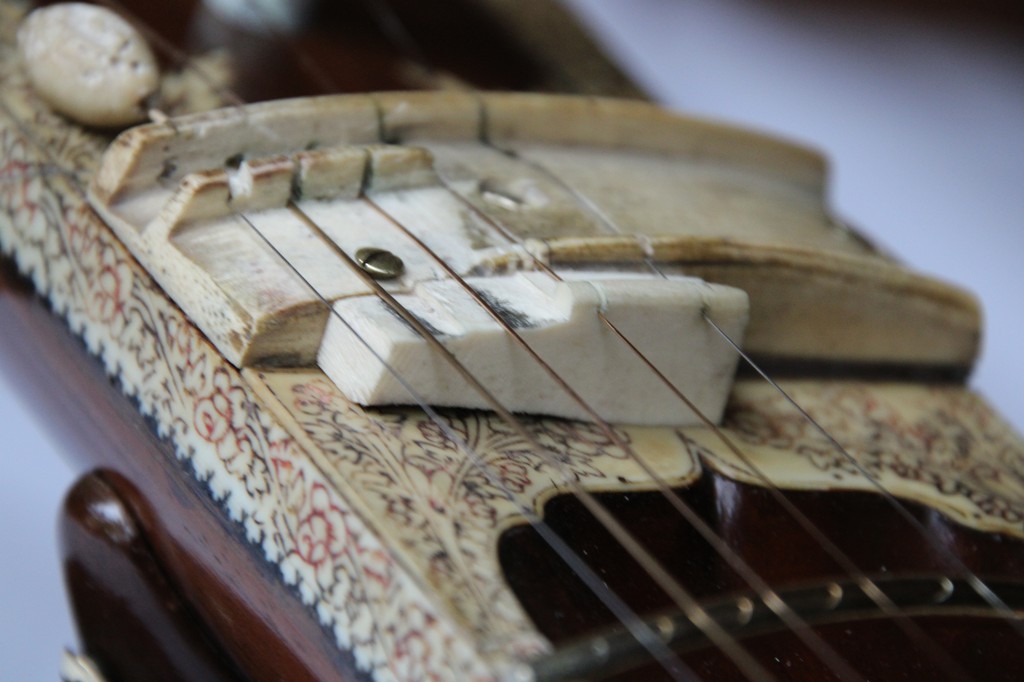

Time to dwell for a moment on the unusual bridge on the head of the neck.

It is widely known that traditionally built sitars do easily suffer from anomalous intonation. This is especially noticeable with the Laraj Kharaj strings. Modern western instruments are often equipped with options to adjust the length of each string separately so that one can achieve quasi-perfect intonation. But that is not easy to achieve on a simple construction like a sitar.

Many sitar maestros started experimenting with an extra bridge added to the bridge at the head of the neck. The construction found on this instrument takes the crown. At first, only the length of the Laraj Kharaj string was adjusted. In principle, that should have sufficed, but apparently it could have been even better. An extra bridge was added later. This time, the Jora string was included in the adjustment.

The result is impressive, though. The intonation of this sitar is one of the cleanest I have ever heard. Once the new strings were fitted and the instrument was given a first tuning, it was noticeable that all the strings can be played quasi right on the fret. Very special, especially then with the Laraj Kharaj….

Only drawback Matyas quickly found was that the Kharaj, when played open, easily tended to go into an excessive buzz. This is not surprising given the actual width of this extra bridge on the headstock. The problem was remedied by turning in the accompanying screw a little deeper, though. But whether this will hold up in the longer term Matyas can tell us soon….
In any case, this sitar is ready for a new start with a promising young sitarist Matyas Wolter. And they lived happily ever after together…. 😉

Those who would like to hear this sitar in the hands of its master please visit Matyas playlist of Ustad Ilyas Khan’s music on his archival YouTube site:

Ustad ILYAS KHAN: https://www.youtube.com/playlist?list=PLvP9MFDf6jaLLvf-4xvUVTsIEkpm3hOsL

Those who would like to hear this restored sitar in the hands of Matyas himself listen here:

Matyas Wolter: https://www.youtube.com/watch?v=4SA9T4OYYrI

Mayur sitar with K&K transducer

SiTAR FAcToRY Posted on by

This new Mayur sitar, made by Waseem Maner, Miraj 2022, belongs to Visjal Auwerx.

K&K Sound make natural-sounding acoustic amplification products and affordable pickups.

Their Pure Pickup for acoustic guitars, installed on the guitar’s bridge plate, is a very good choice for achieving a rich, natural guitar sound — even without a preamp. It’s one of the best passive pickup on the market, for the musician who wants a warm, full-range signal without worrying about cluttering up their instrument, adjusting onboard electronics, or having to remember to change the battery.

I chose the Pure 12-String: 3-head transducer for 12-string acoustic guitar. The larger pickup heads produce an extra strong bass response and pronounced midrange that sounds great in 12-string guitars. I installed it befor inside a surbahar, which sounds perfect!

The work begins by removing the tabli.
First, the celluloid decorations are removed and then the tumba is separated from the tabli.
A wooden reinforcement with a hole in it is then glued to the inside of the tumba. The jack connector is later mounted there.

Then the transducers are glued to the tabli just below where the legs of the bridge are. That is the most efficient place (according to K&K’s instructions) and it is quite convenient that there are 3 separate transducers.

Finally the jack connector is mounted and the tabli is glued back onto the tumba.
Because the original fragile decorations were damaged too much during removal, I place a new binding of celluloid plastic mother-of-pearl imitation. It fits best with the rest of the sitar’s copious decorations.

Done!

Sound samples played by Visjal Auwerx:

Play K&K transducer only

Play K&K transducer + EQ

Play K&K transducer + external mic mix

Play K&K transducer + external mic + tanpura mix

K&K transducer = Pure Pickup™ 12-String
external mic = AKG C2000B
