Sitanpura, the Sitar Tanpura mod

Sitar Factory Posted on by

Good news for the thousands of “tourist”-grade cheap and crappy sitars, bought in India by trusting tourists eager for buying a “real” sitar as a souvenir. For many of them there is life after years of exile to the attic: the sitanpura is born!

I turned this old innocent banished beauty into a real full-fledged 5-string tanpura. And, it is also very flexible because it can be quickly converted into a regular 4-string tanpura. You only have to remove 1 string and put the remaining ones into another slot. You’re done…

Only one skill remains: jawari. Making the ghodi, installing it on the tabli, adjusting the angle and “doing jawari”. But also this can be learned by doing… with patience and persistance…

Sound sample: Play PA-ni-sa-sa-SA Sitanpura

The string set is
1: 0,56mm bronze string tuned to G#2
2: 0,41mm bronze string tuned to C3
3: 0,41mm bronze string tuned to C#3
4: 0,41mm bronze string tuned to C#3
5: 0,76mm brass wound string tuned to C#2

Benares tanpura repair

Sitar Factory Posted on by

One day I received a quite damaged and almost demolished tanpura. “Children have been playing with it…” was the comment of the owner. I wonder what game they have been playing, but it was certainly not a peaceful game. Or, at least at some time it went out of hands… as one can say?

The tanpura seems to be an old instrument, bought in Benares in the 70’s. It shows already some diligent life-signs, sensations and similar repairs. As such the gourd looks impressive. I will aim to maintain this mood. Just regain its spirit. That’s where it’s ever made for…

I started to remove every worn leftover hardware piece and glued all the cracks in the wooden body. There were many! And, even the tabli has completely come loose.

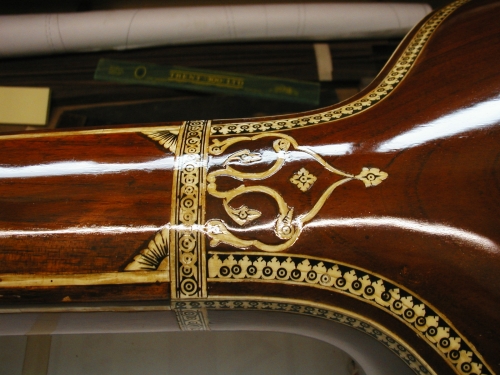

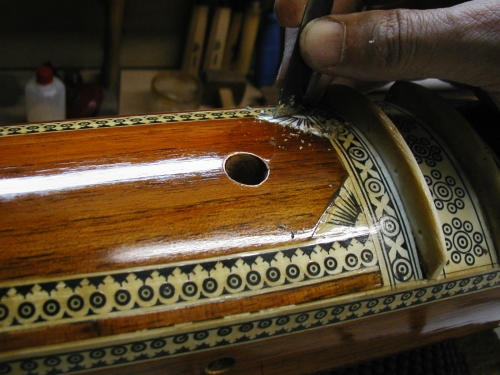

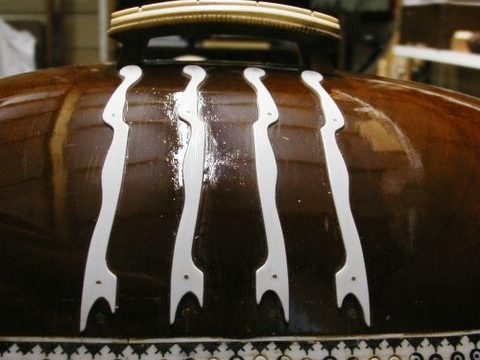

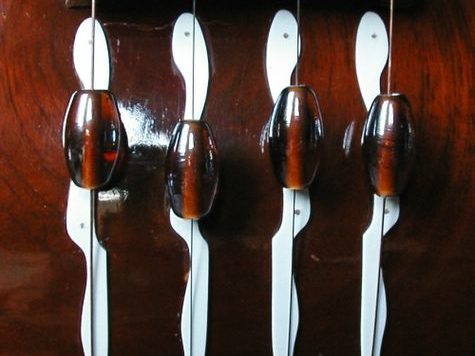

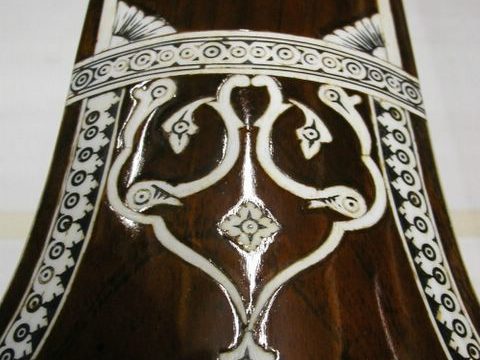

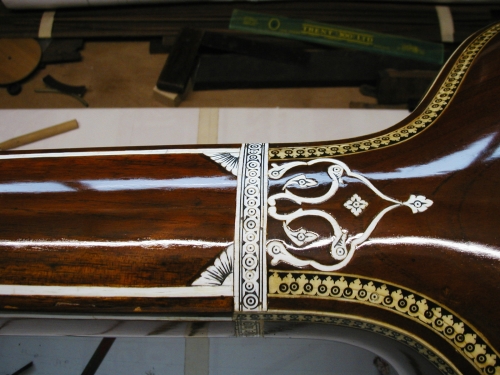

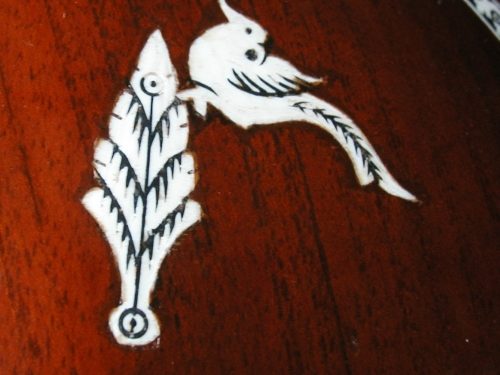

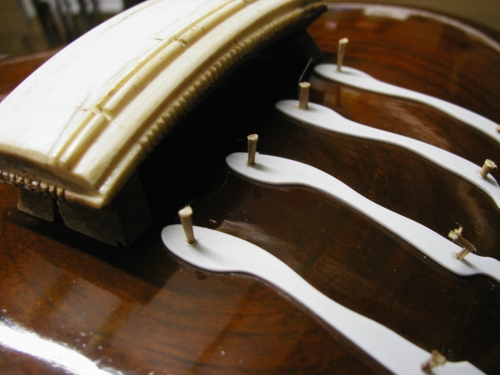

I restored some deco’s and took advantage of the situation to create some extra goodie carved into the celluloïd: an OM sign, in the middle of a simple repetitive circular design …

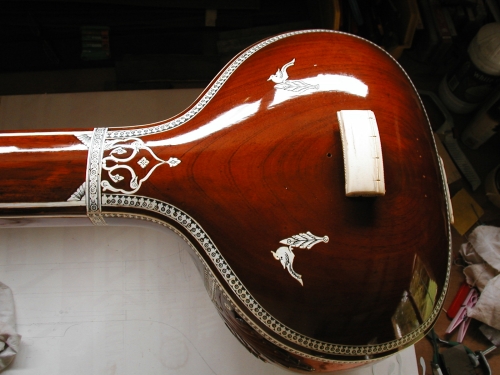

After that, some body cleaning and leveling has been performed followed by rough color matching. Mahogany as well as gulanagari red have been applied before, so I used it again now. Followed by a thin and fresh new protective shellac finish layer, treated with bee wax to regain it’s aged expression.

Doing jawari & mounting new strings to conclude…

Note: this is a large female size (35inch) tanpura.

Sound sample: Play Benares tanpura

The scale (open string length) of this slim instrument is 90cms and it is tuned to F#.

The string set is
1: 0,41mm bronze string tuned to C#3
2: 0,30mm steel string tuned to F#3
3: 0,30mm steel string tuned to F#3
4: 0,56mm bronze string tuned to F#2

Dagar Tanpura

Sitar Factory Posted on by

Ud H. Sayeeduddin Dagar, a great dhrupad singer, cousin uncle from the legendary Dagar brothers, frequently visits Belgium for concerts and teachings. Because travelling with big tanpuras is not easy and not without risk, Dagarji has kept a couple of them here resident for this purpose. Recently, a huge, very old and worn tanpura was in the shop. It was made by famous tanpuramakers from Miraj: Abdul Sattar & Hadji Abdul Karim. There was a minor tumba crack to be repaired and a new jawari to be fitted. The ghoraj, specially made for Dagarji, came as a massive and impressive plain staghorn piece, with a big, very roughly curved surface. Firstly I have made this surface smooth and softly rounded with a coarse file. After that I used soft blocks of upgrading sandpaper to polish the curving perfectly to its final shape.

At his request, special thick pins are mounted under the feet to prevent the ghoraj from slipping. Note the amount of holes which were already made in the tabli before. I decided not to make any more other new holes but to use a couple of existing ones.

Sound sample:
Play Tanpura in B-flat

The scale (open string length) of this huge instrument is 96,5cms and it is tuned to B-flat.
The Ud H. Sayeeduddin Dagar custom string set is
1: 0,60mm steel string tuned to E#1
2: 0,60mm steel string tuned to A#2
3: 0,60mm steel string tuned to A#2
4: 0,91mm bronze string tuned to A#1

White Tanpura

Sitar Factory Posted on by

Inspired by the white sitar mod i’ve painted this tanpurabody also in white using Bio Pin™ waterbased organic white paint and Colortone™ high gloss waterbased finish. The patri, jawari and mankas are all made from Elforyn™, a modern synthetic ivory substitute. So also this one became a real “organic & vegan” instrument,… 100% suitable for vegetarians… 🙂 … and she looks very neat too.

Sound sample:
Play White Tanpura

Swarangini Modification

Sitar Factory Posted on by

Swarangini Digital is an electronic tanpura machine that delivers high quality original tanpura sounds. It has been introduced to the market in 2008. For more info about this very handy and popular machine visit the Sound Labs website. The machine is excellent for tuning and accompaniment. But, since this is a digital machine, it has a big disadvantage: the main volume is not anymore adjusted continuously but in steps. And, unfortunately, these steps are rather big, especially in the lower volume regions. Also the lowest sound ever is still much too loud in many occasions such as practice at home.

The most simple and very adequate solution is to create yourself an analog volume fine tuning knob by putting a potmeter in series with the loudspeaker. The only consideration which has to be taken into account is that this part of the circuit works under a slightly higher current level since it is the main amplifiers output. So, best is to choose a wire-wounded (high power) potmeter. A value of 50 Ohms, 4 Watts works great.

Open the box by removing the 4 screws and cutting the warranty seal sticker. Drill a 10mm hole through the side and remove the excess plastic on the inside to make room for the potmeter. Fix the potmeter and loosen the black wire which is leading to one of the solder lugs of the speaker. Solder this wire to the middle lug of the potmeter. Take another piece of insulated copperwire and solder it between the adjacent potmeter lug and the speaker lug on which the black wire was attached before. Close the box and mount a nice knob. Thats all for your custom volume finetuning knob…


Tanpura damage

Sitar Factory Posted on by

This small instrumental tanpura has been damaged during transport from Calcutta to Belgium. Frederic tS. has bought it new at Hiren Roy and shipped it by air with Jet Airways. The parcel arrived in Belgium with a slight crack in the fiber case and the instrument itself was pretty damaged. The tabli and a small piece of the neck became loose over 70% of its contour. At the time of departure it was very hot in Calcutta, Frederic said but a newly made instrument from this famous instrument makers branch should be resistant to regular climatical circumstances as they occur very common in that region.

For me and you a unique occasion to discover the interior of such an instrument. The tabli is thin, measuring from 5 to 9mm, out to in and roughly cut with a round chisel. Also the back piece is cut very roughly and irregularly and is rather thin. At the tail a piece of bamboo is mounted and bamboo nails are used to fix the decoration again after the repair.

Just some pictures… (click to zoom)

Tanpura Restored

Sitar Factory Posted on by

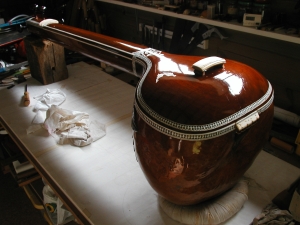

Eventually even the restoration of an anonymous tanpura gets finished…

Sound sample: Play Listen how it sounds !!
