Tag Archives: veena

Rudra Veena repair

Sitar Factory Posted on Wednesday, 13 July 2022 by AnandaSunday, 16 October 2022

This anonymous rudra veena was found by my friend Guillaume CZLT in Bombay Pekin Bruxelles, a shop for second-hand furniture in Brussels. It was quite badly damaged. One of the tumbas was badly broken, the main bridge had been torn off and lost, and all the frets had been worn away. The fretboard looked more like a pattata field. All the frets were loose and crooked on the neck. A cikari pin was broken… and one day there must have been strings on the instrument…?The work started with repairing the broken tumba. I counted 27 pieces (or small pieces) and 3 appeared to be missing. The puzzle was put back together in 5 stages. Fortunately, everything still fitted well and the transitions are usually smooth. A few coats of varnish over the whole finished this part. Colour matching was not done at this stage.After that, the frets were taken in hand. The old aluminium strips were easily lifted out of the holder. I ordered a set of 24 new pre-cut pieces of fret wire Wagner 9671 Nickel Silver Frets, Large/Jumbo, with dimensions (W x L x H): 70 x 2,75 x 3,2 mm. But first the fret holders all had to be made equal and properly attached to the central guiding shaft. And this one was crooked and irregular too. With a little trick I could get all the frets nicely in one row and fix them firmly in place. After that, I made the top even and flat and finally installed the new frets. That looks good!The last part is the new ghodi. A round base that is glued to the neck gets a nice straight surface. On top of that comes a removable ghodi that is firmly held in place by two metal pins. Quite a construction, but in the end it fits nicely on the whole. Because the upper part is removable, you can easily do jawari at any time. Now all that’s left is to put new strings on it…I think Guillaume will be pleased… 😉

Technical info on strings & tuning according to Asad Ali Khan style:

The scale measures 945cm & the instrument is tuned to G#
Cikari’s: steel 0,30mm (N°3) tuned to G#3 (SA) & G#4 (SA)
Baj tar: steel 0,40mm (N°6) tuned to C#2 (MA)
SA tar: bronze 0,56mm (N°24) tuned to G#2 (SA)
PA tar: bronze 0,72mm (N°22) tuned to D#2 (PA)
Kharaj: flatwound bronze 0,92mm (N°20) tuned to G#1 (SA)
Laraj: bronze 0,56mm (N°24) tuned to G#2 (SA)



For more info about rudra veena you can visit www.rudravina.com and www.rudraveena.org

Posted in repair | Tagged ghoraj, parda, SitarRepair, tumba, veena | 1 Reply

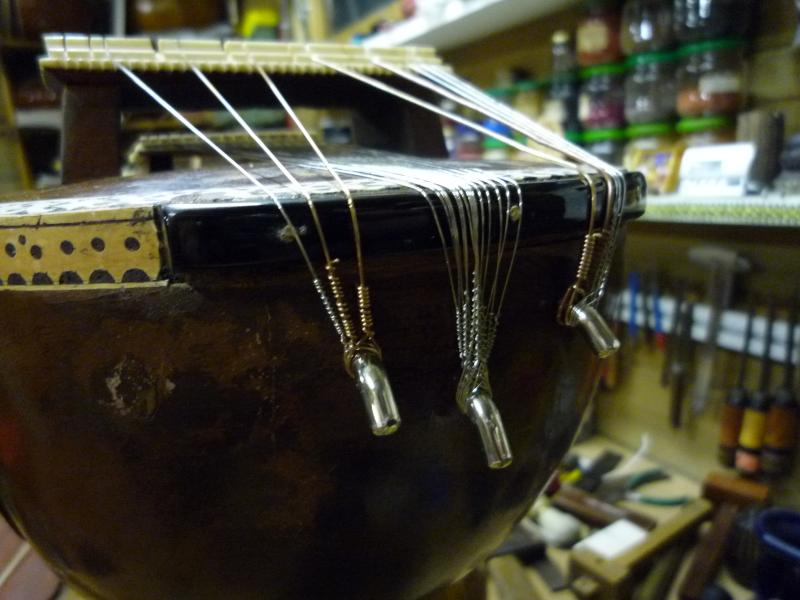

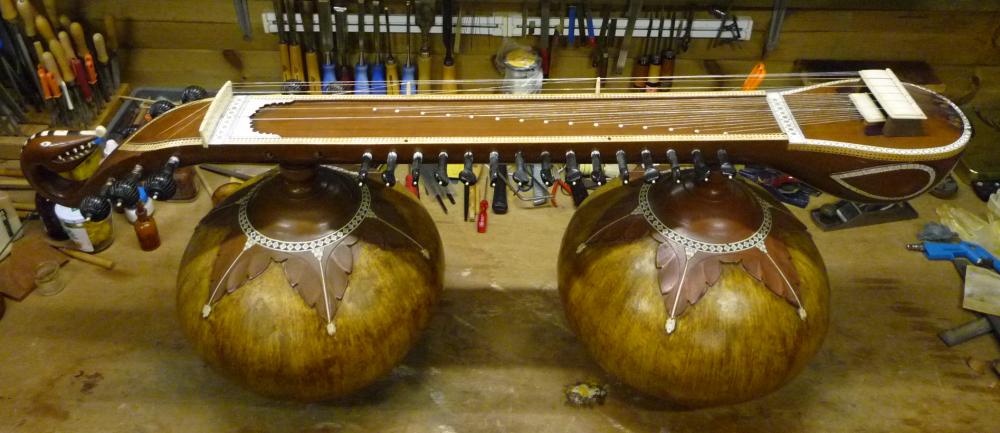

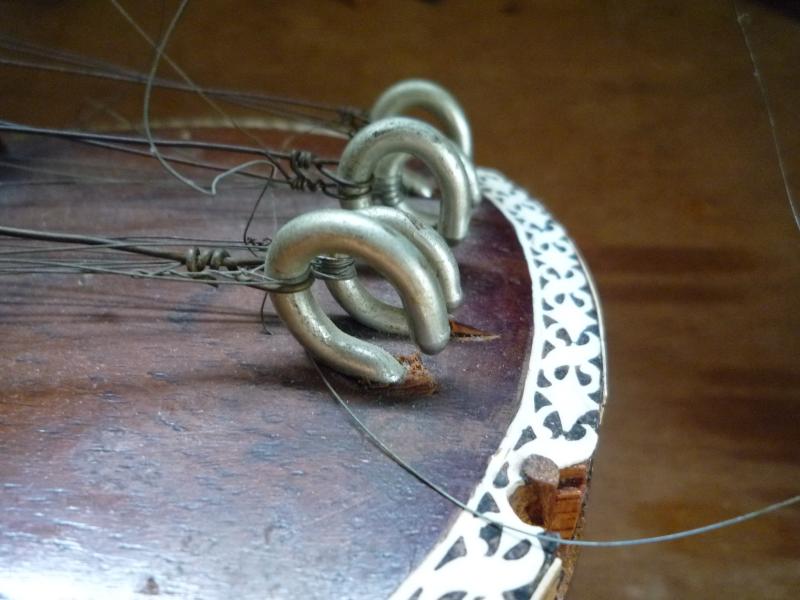

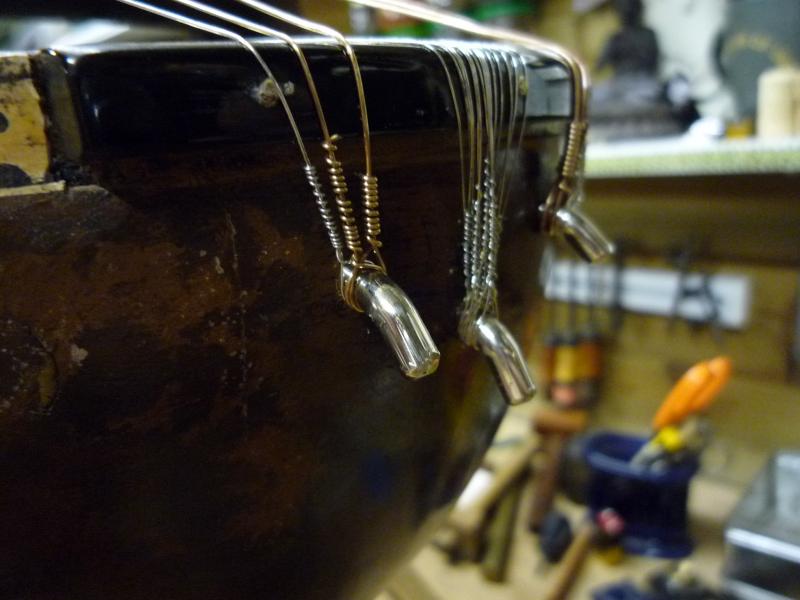

Vicitra Veena massacre

Sitar Factory Posted on Friday, 16 December 2016 by AnandaFriday, 25 February 2022

… without words …

Technical info on strings & tuning:
Baj tar: steel 0,37mm (N°5) tuned to F#2 (MA)
Sa tar: bronze 0,46mm (N°26) tuned to C#2 (SA)
PA tar: bronze 0,56mm (N°24) tuned to G#2 (PA)
Laraj: bronze 0,72mm (N°22) tuned to C#1 (SA)
Kharaj: flatwound bronze 0,92mm (N°20) tuned to G#1 (SA)
Cikari’s: steel 0,30mm (N°3) & 0.28 (N°2) tuned to C#3 (SA) & C#4 (SA)
Tarav’s: steel 0,28mm (N°2)

Posted in curiosity, repair | Tagged SitarRepair, veena | 1 Reply

Belgisk – Dansk Veena Guitar

Sitar Factory Posted on Monday, 11 February 2013 by AnandaSaturday, 1 May 2021

Here is another unique combination: a fusion between a guitar and a veena. The concept has been developed and build by Shintai who was born in Belgium and now lives in Denmark. He frequently plays meditative concerts on this remarkable instrument.





Play Shintai on his Veena Guitar

Basically the instrument consists of a bass guitar-neck fitted on an acoustic guitar body. It has 7 main strings, 12 taravs & 23 specially shaped pardas. The 5 highest notes, located on the soundboard, are fixed while the remaining 18 are moveable. The instrument’s impressive head accommodates 17 tuning keys. Amongst them are 4 banjo-type tuners pointing to the backside and 2 extra machine heads are mounted on the neck for tuning the cikari strings.



On Shintai’s request I’ve added a regular sitar jawari (Elforyn™) and an extra wide tarav jawari (bone) and also 6 moveable tarav moghara (Elforyn™)

Posted in curiosity, listen, lutherie | Tagged fusion, guitar, varisitari, veena | 2 Replies

Murari Rudra Veena on visit

Sitar Factory Posted on Friday, 10 August 2012 by AnandaTuesday, 5 January 2016

This very impressive new Rudra Veena came to my workshop for initial setting and jawari. It is now owned by Fabio T., a very enthousiastic ICM adept and young italian filmmaker. This is one of the last rudra veenas made by maestro Murari Mohan Adhikari, the last representative of Kanailal and Brother, worldfamous Calcutta based musical instrument makers. It was originally ordered by late Asad Ali Khan and, although the instrument is already a couple of years old, it has never been played.

The first thing to do was a proper string setting. I noted that all the strings were mounted very high above the first parda’s position (lowest notes). It was just impossible to play MA tivra from the first fret. The baj tar had to be lowered by approx. 1.5mm on the tar daan to be able to reach the MA tivra correctly. After that, all the pardas were adjusted to their new and correct position on the neck. Adjustments needed for proper intonation to the SA & PA tar & kharaj were only very few.

The jawari work took almost 8 hours to complete. The original jawari surface was shaped only very roughly. Not a single string had a useful initial sound. Only heavy rattle and clatter came out. But I started to file, scrape and sand, string by string, slowly and steadily and finally realised a smooth and open sound with a stable and long sustain on each note. The only problem I encountered was on the kharaj tar. This 0.92mm plain bronze wire seems to be too stiff to be able to make a proper progressive contact with the jawari’s surface. This problem sometimes occurs on surbahars and sitars with a somewhat heavy kharaj as well. So I adopted their solution: change the original and ancient plain bronze heavy wire into a modern fine and flexible flatwound bronze on steel string. The result is amazing: A very deep, nicely round and fully evolving open sound with virtually endless sustain. Om Namah Shivaya…

Technical info on strings & tuning according to Asad Ali Khan style:

Cikari’s: steel 0,30mm (N°3) & 0.25 (N°1) tuned to G#3 (SA) & G#4 (SA)
Baj tar: steel 0,40mm (N°6) tuned to C#2 (MA)
SA tar: bronze 0,56mm (N°24) tuned to G#2 (SA)
PA tar: bronze 0,72mm (N°22) tuned to D#2 (PA)
Kharaj: flatwound bronze 0,92mm (N°20) tuned to G#1 (SA)
Laraj: bronze 0,56mm (N°24) tuned to G#2 (SA)

For more info about rudra veena you can visit www.rudravina.com and www.rudraveena.org

Posted in curiosity, maintenance | Tagged Jawari, Kanailal, kharaj, MurariAdhikari, veena | 11 Replies
