Hiren Roy 70’s refurbished…

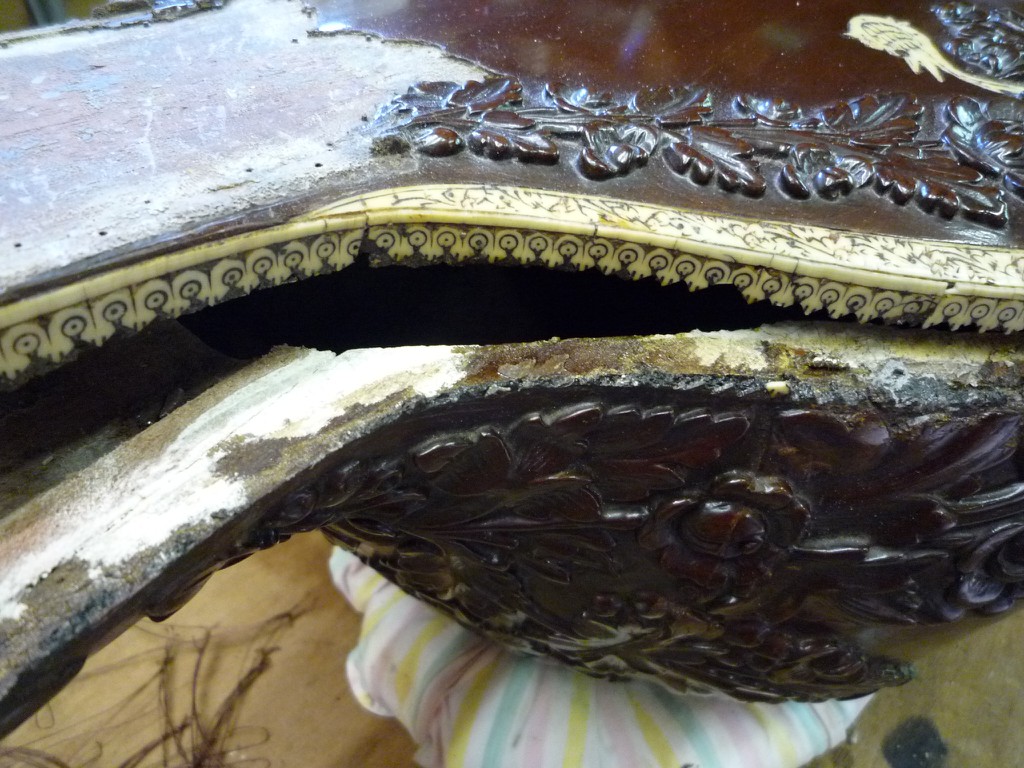

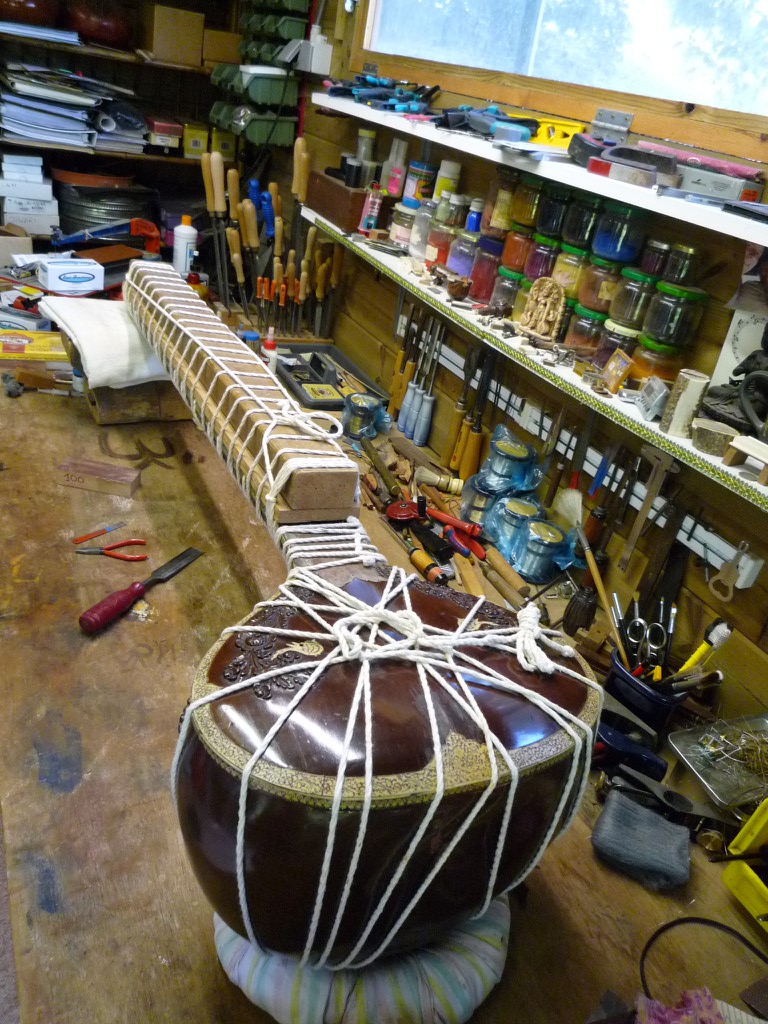

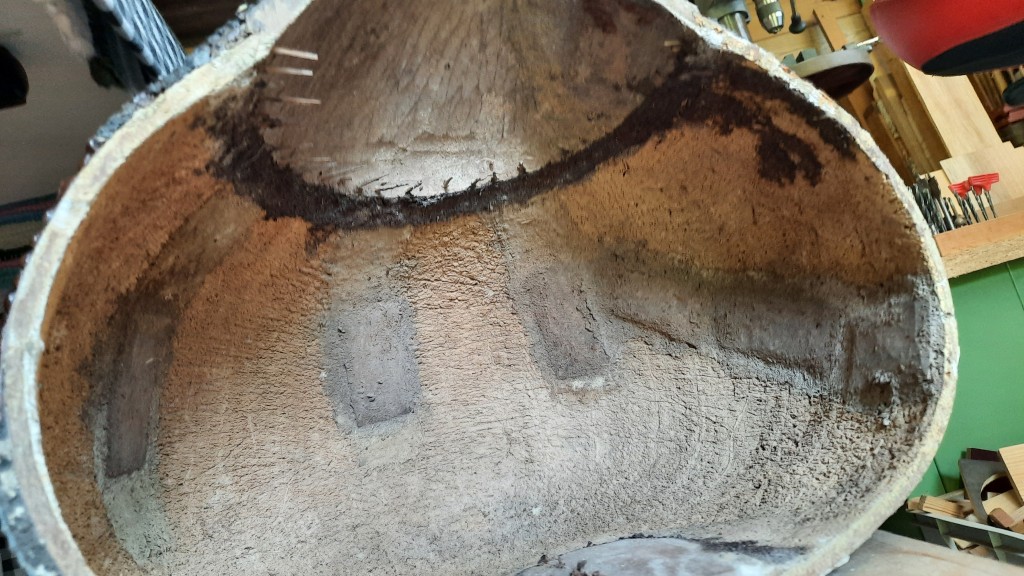

Peeling tumba & crack repair with color change…
before

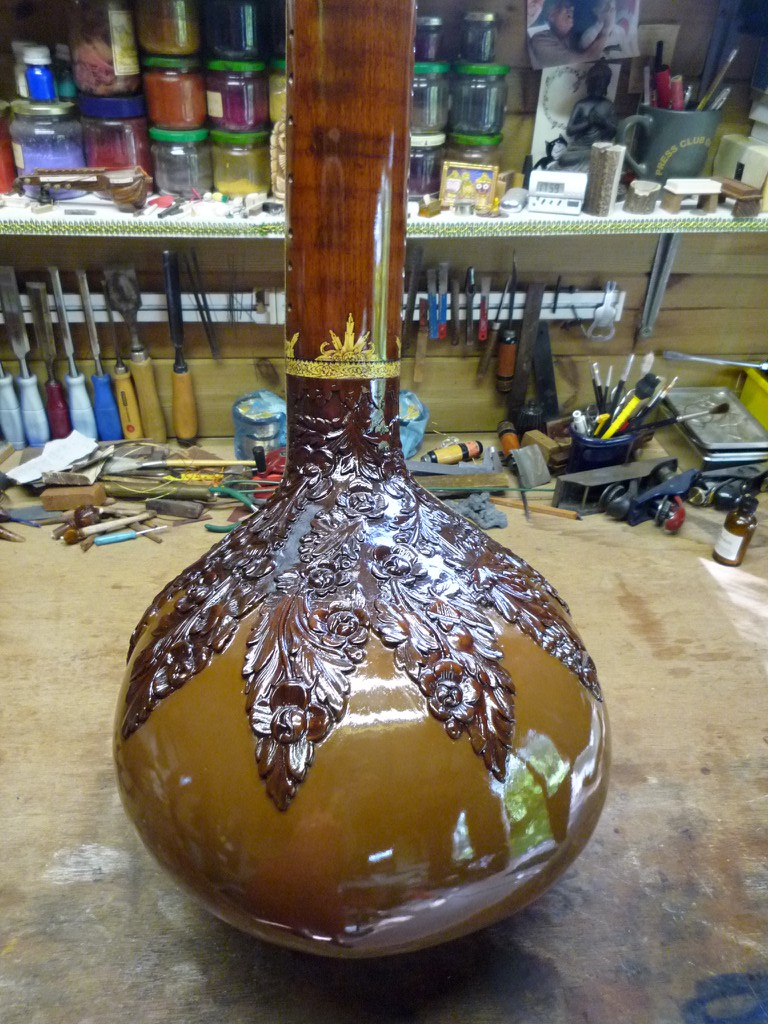

after

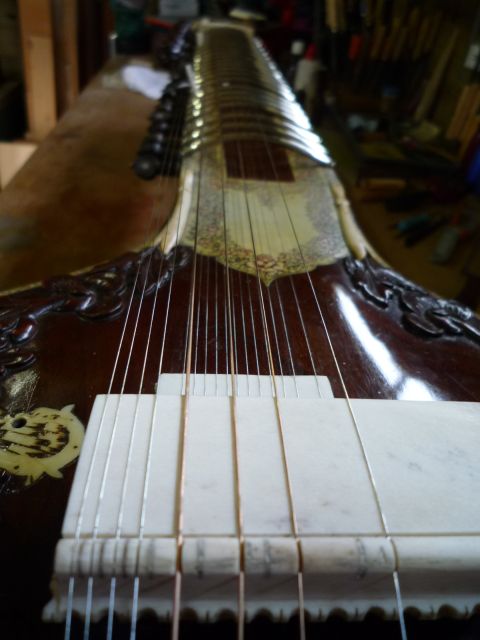

New jawari ghoraj mounted…
Dieter Zarnitz jawari ghoraj with Cumaru top & Angelim Amargoso feet installed.
Pardas added…
Added RE komal & DHA komal, 23 pardas in total.

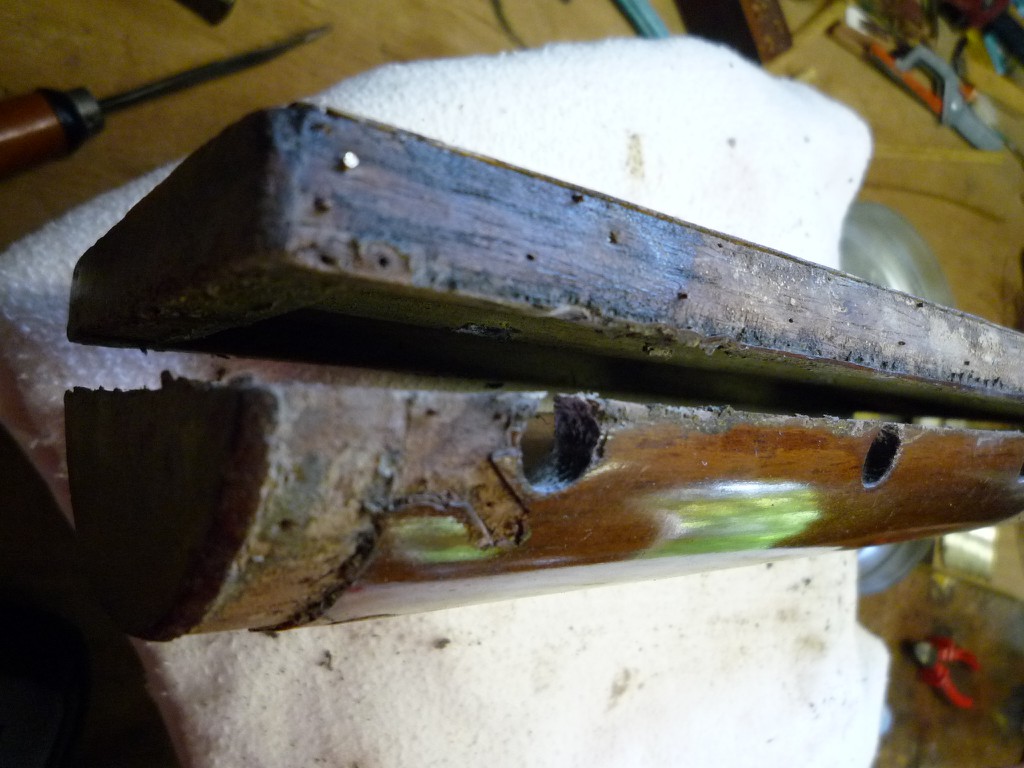

On a traditional sitar, tuning is established by pressing a wooden peg (kuti) into a hole. Unfortunately the wood on this Barun Ray sitar is cleaved. There is a long and deep split line between the baj and jora kuti. Both strings were not keeping tune anymore. The pegs got loose too easy. How this has happened is difficult to say. Maybe during a transport something has been hitting the kutis and made the wood split. Or maybe that the wood was already damaged at the moment of selection or during the construction of this sitar. Thus weakened, it may got easily split caused by the high pressure coming from the kutis being squeezed into the hole during tuning activities.
But the repair of this defect is not so difficult. First thing to do is to remove the decoration along the head. Then split the upper head plate from the latter curved neck piece.
Repair the crack with glue and, at the same time I ‘ve added a reinforcement piece of wood on the inside. On this piece the grains are running in a perpendicular direction in relation to the wood of the head plate.
Close the head and fix the deco. Finally drill the hole and clean it.
Finish with some fresh shellac and fit the kutis again. Done…

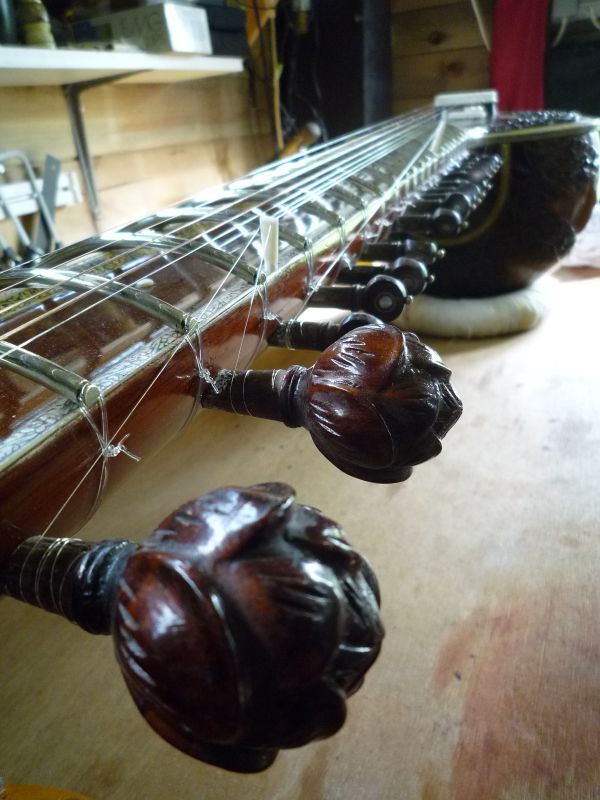

Another young and dedicated Ashok Pathak sishya came to me with this old Hiren Roy sitar. The question came up again: Can you add an extra cikari string to this precious vintage sitar in order to meet the Balaram Pathak Garana style specifications?
Since I am not so much in favour of starting to drill holes in old and valuable instruments, I decided to introduce an alternative way. Just as I did before with an old and beautiful Kartar Chand surbahar, I proposed to use the first tarav kuti to mount the 4th cikari string (high SA). This sitar came with 13 tarav strings. So then now 12 are left, which finally should be a good compromise…?
Doing so, the workflow is highly reduced to the making and installing of a new cikari pin which can hold 2 cikari strings & re-organising the existing cikari string positions and adding an extra cikari string slide on the jiwari. Also the original last cikari string post (high SA) has to be replaced by a new pin.
Also read: Sitar Mod: adding 4th cikari.

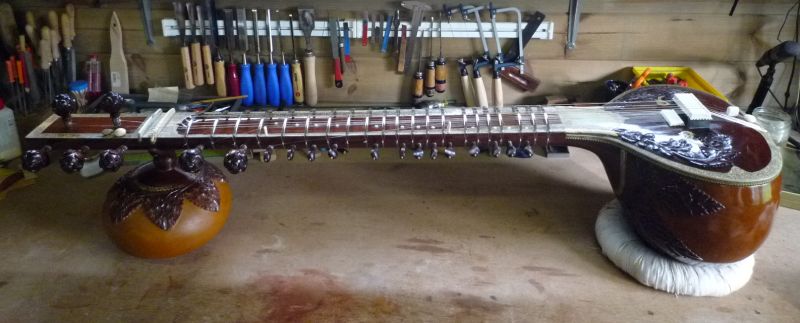

This old Hiren Roy sitar, brought to me by Arnoud E. needs new pardas and some small repair work. Arnoud provided a full set of new pardas made by Hiren Roy Company, but some of them were made too short. Thus I decided to reuse a selection of the old pardas and fitted them at the end (the last 4, nearest to jiwari).
Also some body cleaning has been performed and together with new strings and fresh jiwari this sitar is ready for another life… finally almost a complete restoration.

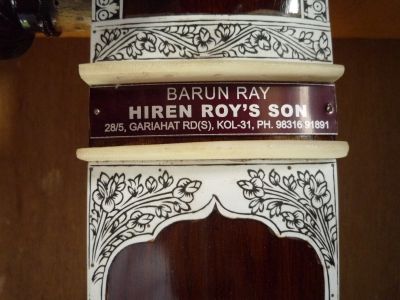

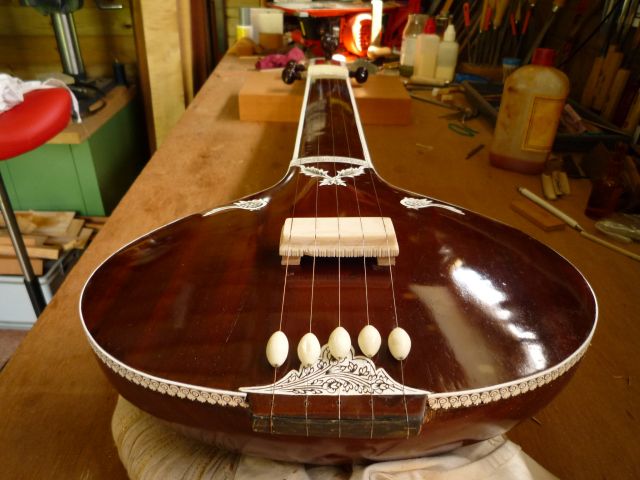

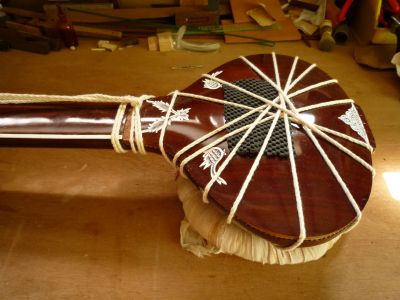

This small instrumental tanpura has been damaged during transport from Calcutta to Belgium. Frederic tS. has bought it new at Hiren Roy and shipped it by air with Jet Airways. The parcel arrived in Belgium with a slight crack in the fiber case and the instrument itself was pretty damaged. The tabli and a small piece of the neck became loose over 70% of its contour. At the time of departure it was very hot in Calcutta, Frederic said but a newly made instrument from this famous instrument makers branch should be resistant to regular climatical circumstances as they occur very common in that region.

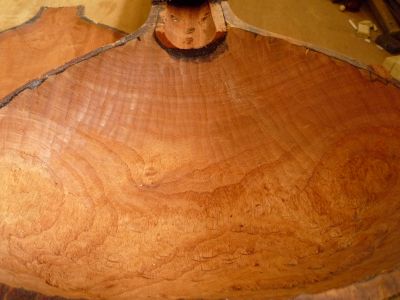

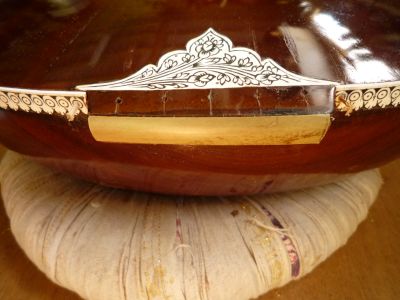

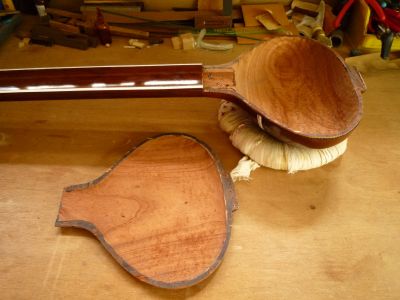

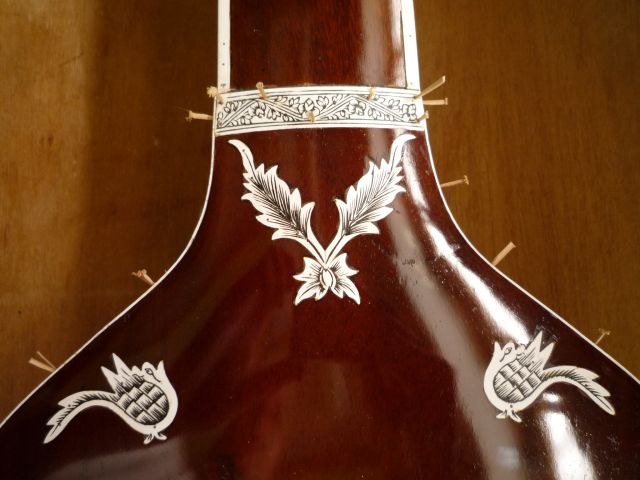

For me and you a unique occasion to discover the interior of such an instrument. The tabli is thin, measuring from 5 to 9mm, out to in and roughly cut with a round chisel. Also the back piece is cut very roughly and irregularly and is rather thin. At the tail a piece of bamboo is mounted and bamboo nails are used to fix the decoration again after the repair.
Just some pictures… (click to zoom)
Towards the end of last year Hiren Roy company came with their version of the “compact sitar”.
At first sight a regular sitar with an original slotted head, but …

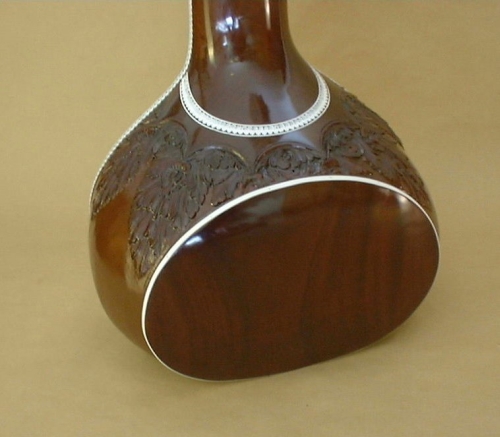

…they simply cut the tumba by half.
It looks very similar to Sanjay’s “studio travel model“, which has a full wooden body. This very successful concept has been copied and sold by many other sitar makers.
Further pics and details of the Hiren Roy Compact sitar are available at http://www.india-instruments.de/pag/stringinst/sitar/hr_full_com_e.html. Pictures courtesy of www.india-instruments.de.
