Tag Archives: tarav

Tarav Mogara repair page

Sitar Factory Posted on Tuesday, 16 December 2014 by AnandaTuesday, 5 January 2016

I’ve added an illustrated report about the repair of tarav mogaras. These are small, round ducts which lead the tarav strings through the neck towards the tarav kutis. They are usually made out of bone or horn. Sometimes plastic is used.
Due to a very high tension coming from the tarav string which is laying on the rim, these ducts get used sooner or later. Finally they will break, and then there is nothing left to prevent the string from cutting into the wood.

So, sometimes, these tiny fragile pipes need to be replaced. Or, if you are lucky and they didn’t break (yet), they can be re-used by rotating them over 90°.

How to do? See page Tarav Mogara Repair at the Repairs section…

Posted in repair | Tagged SitarRepair, tarav | Leave a reply

Tarav Mogara Repair

Sitar Factory Posted on Saturday, 13 December 2014 by AnandaFriday, 15 April 2022

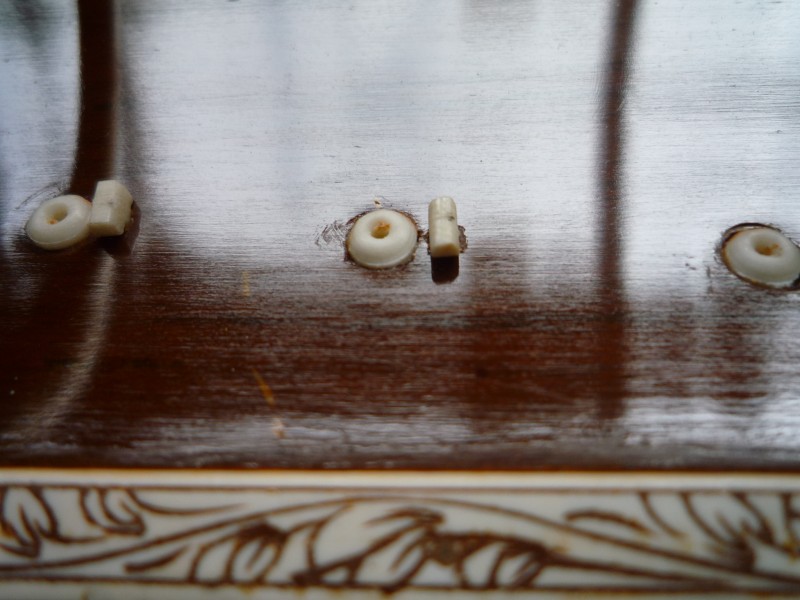

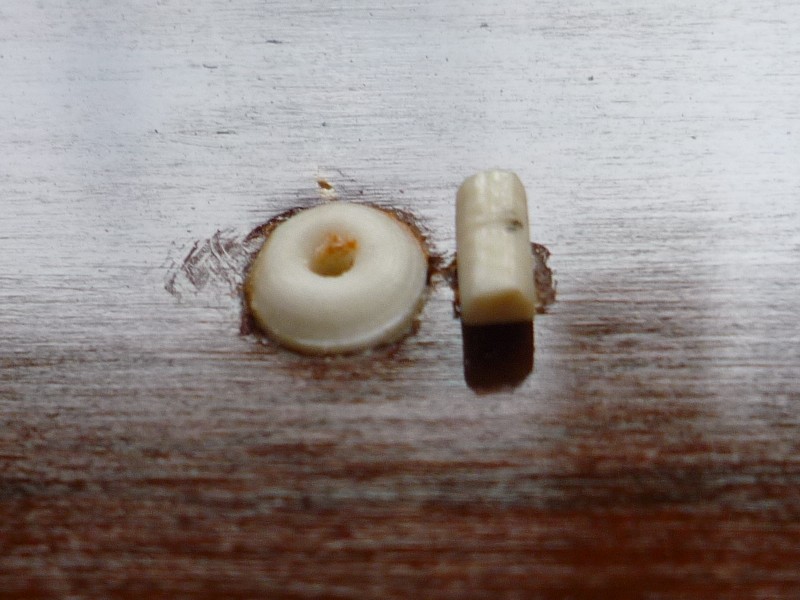

Here is a worn tarav mogara. The string is deeply ingrained into the bone rim… this needs to be repaired.

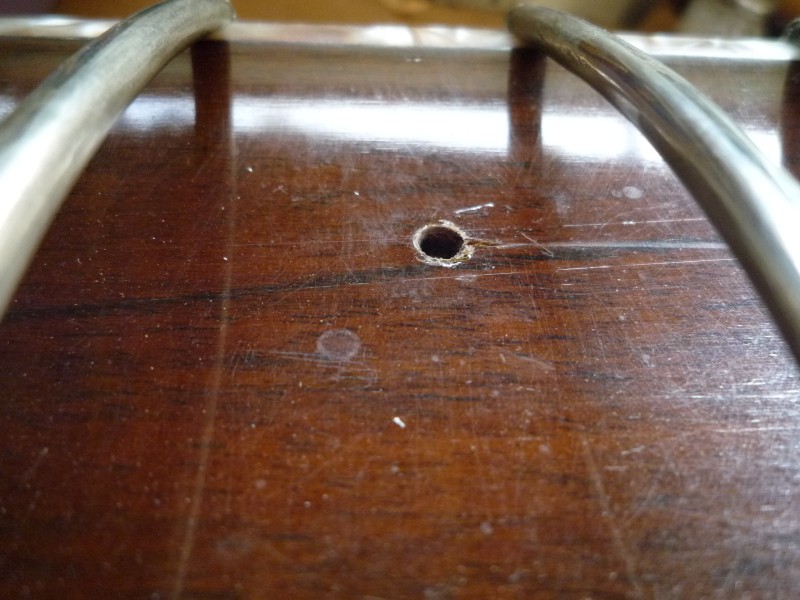

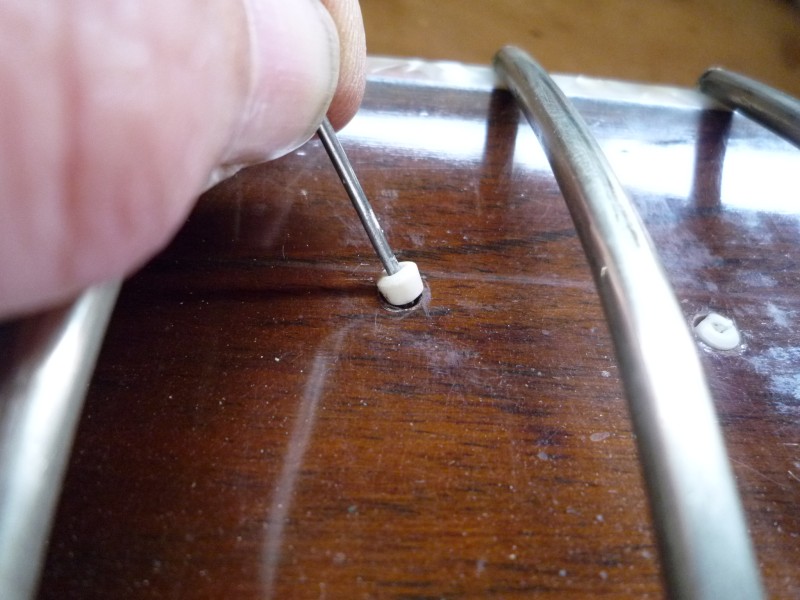

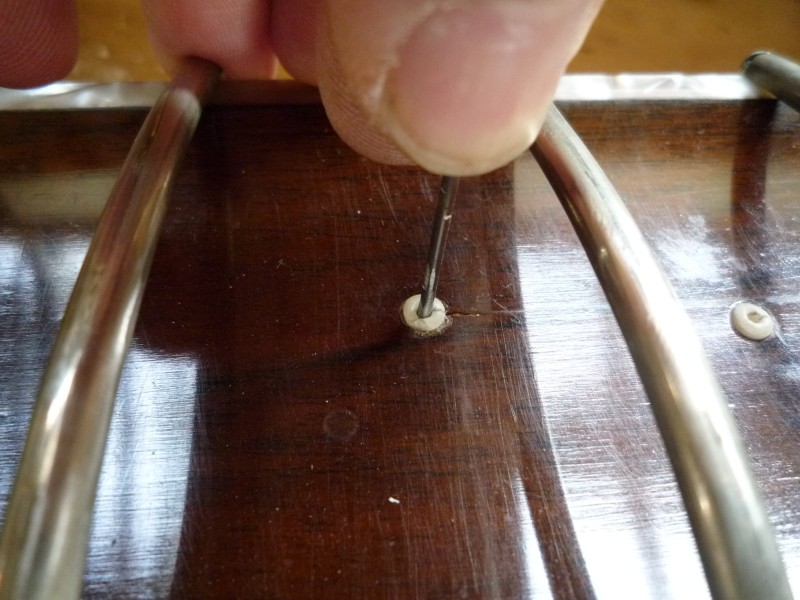

Start with removing the bad piece with a tight-fitting metal pin. Pry it out gently by turning round and round with the metal pin. Clean up the hole…

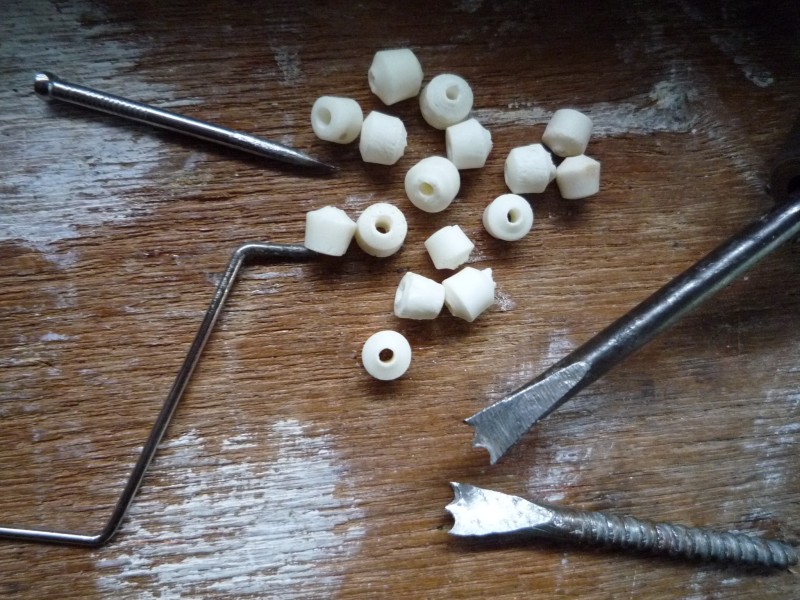

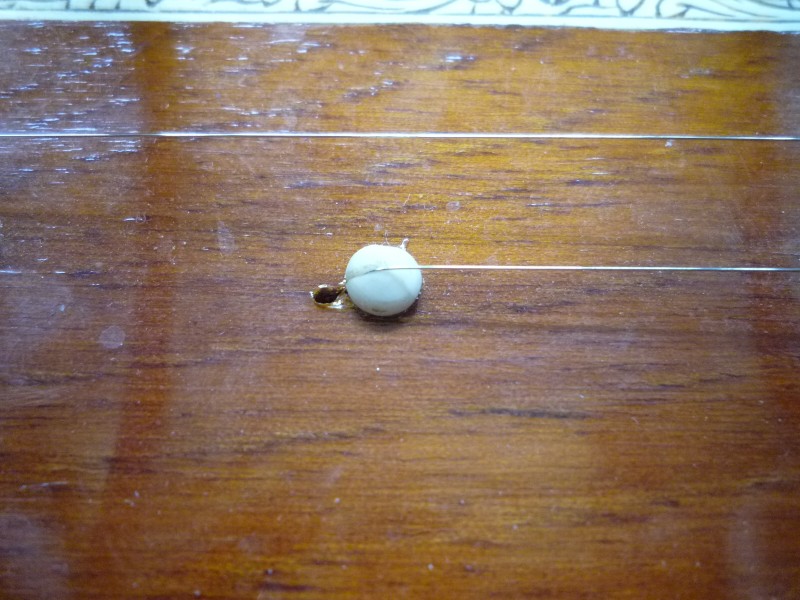

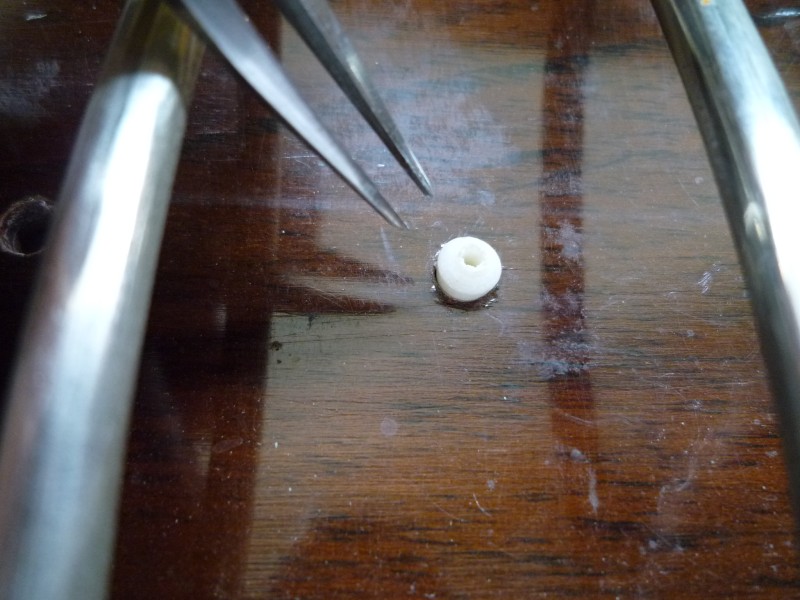

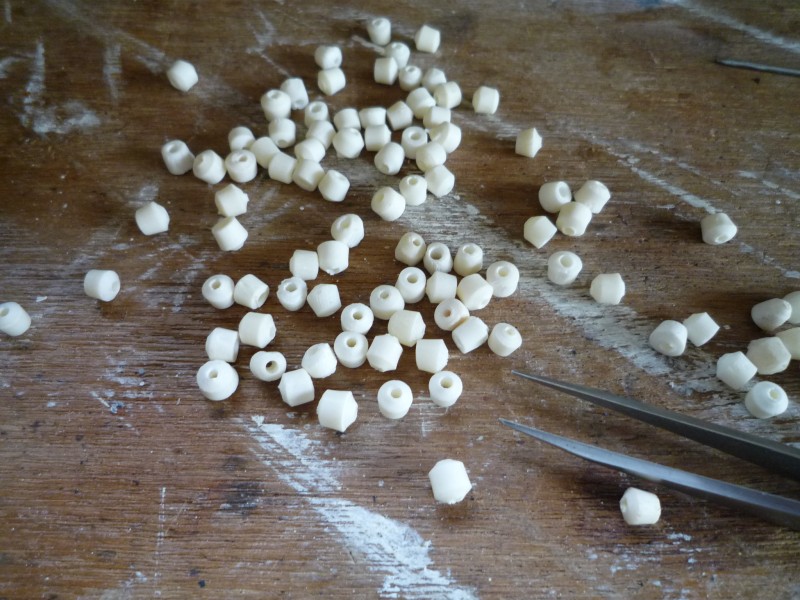

Select a new one, make sure it is well-fitting!!  Or, if you are lucky and it didn’t break, then it can be re-used by rotating it over p.ex. 90°, or 180°…. Glue it, and let it dry.

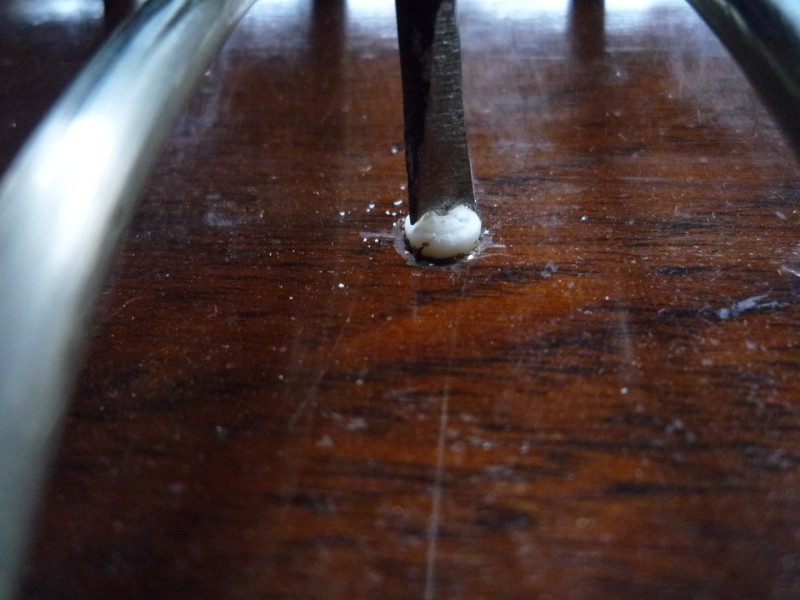

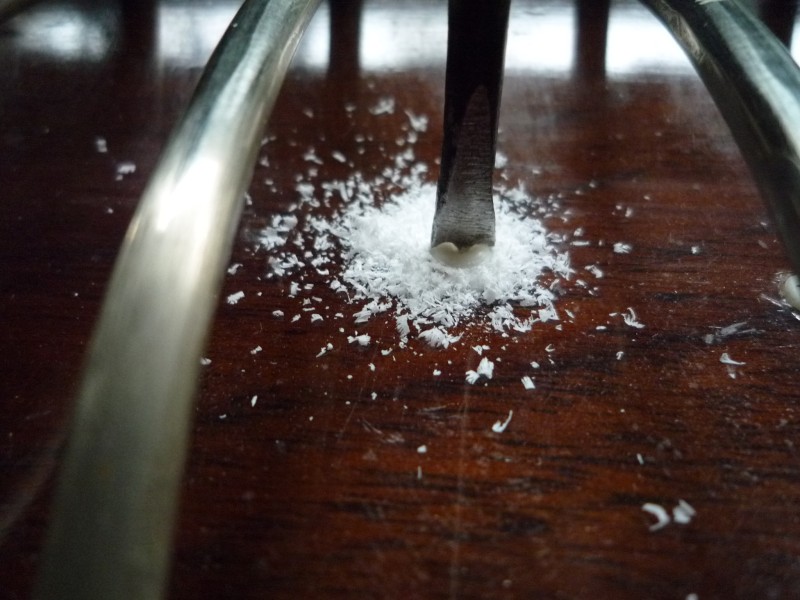

Apply shaping with a hand-made mill.

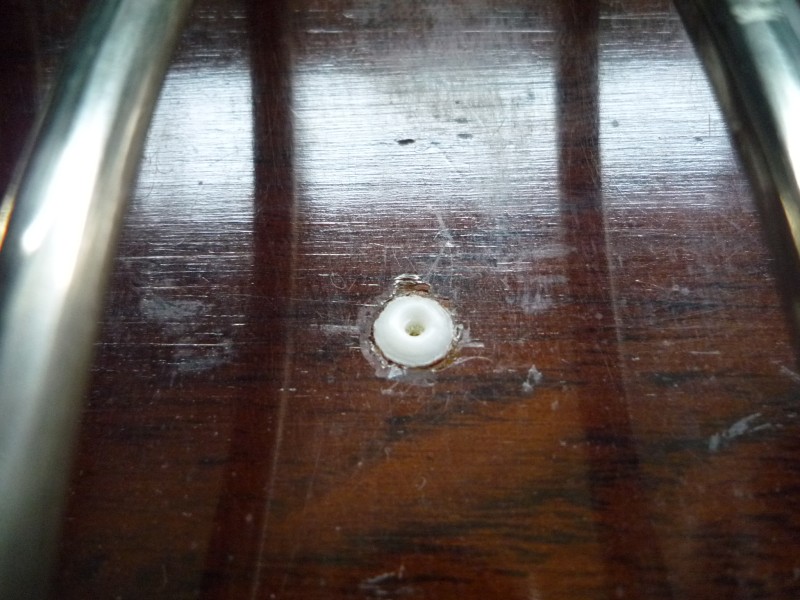

Clean it up, check the hole (it may be obstructed by dried up glue) and mount a new string…

Tools

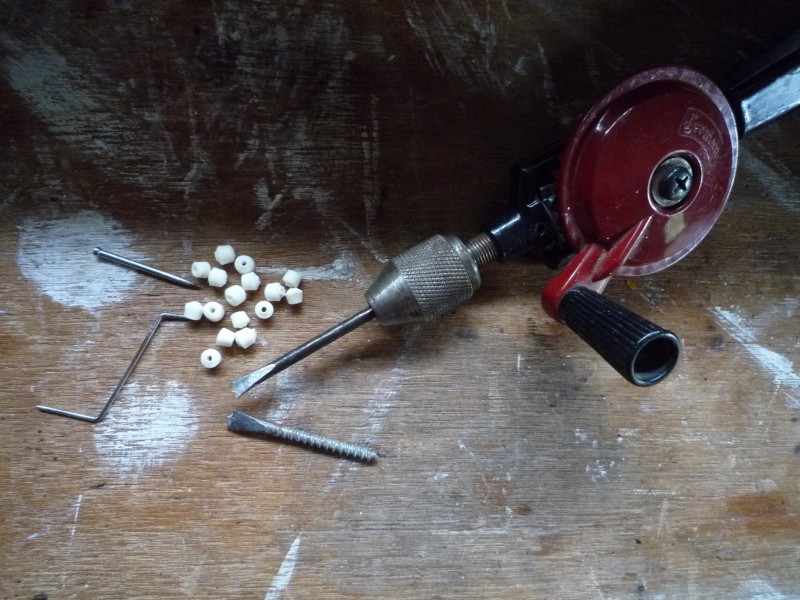

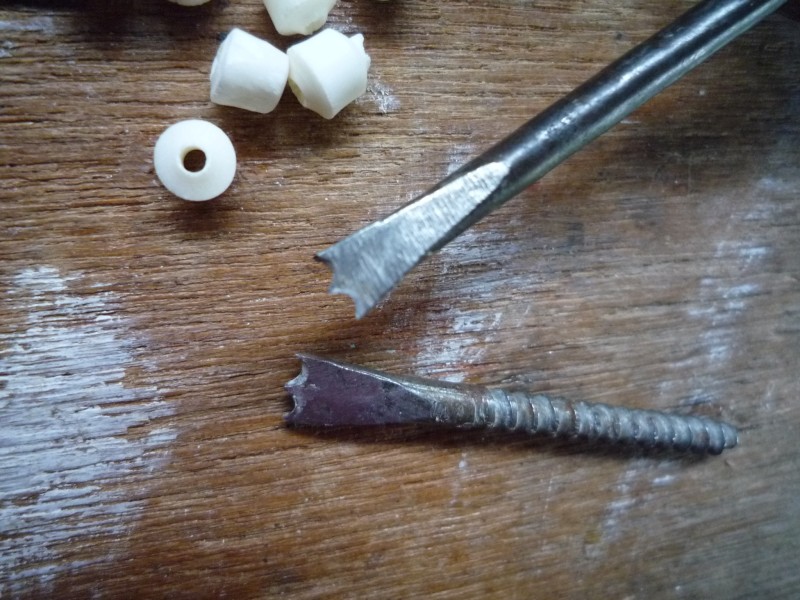

Metal pins, hand drill & hand-made mills.


Improvements

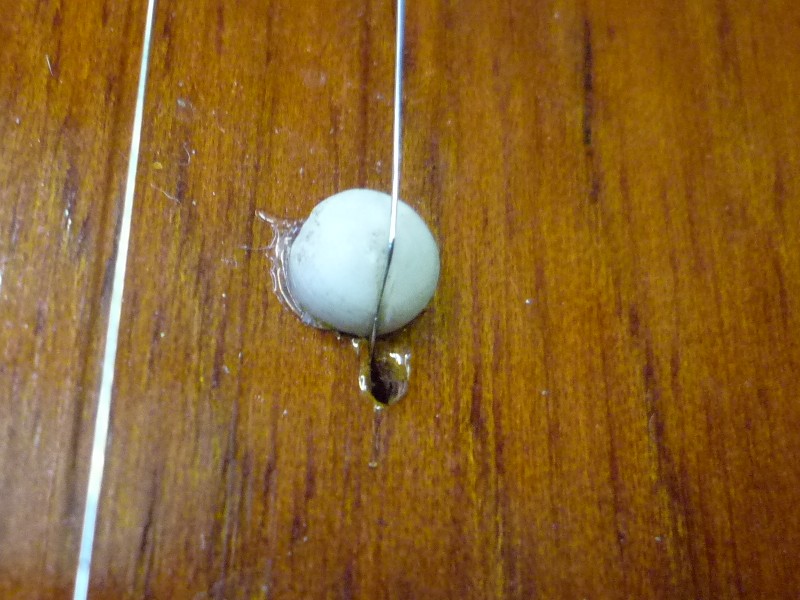

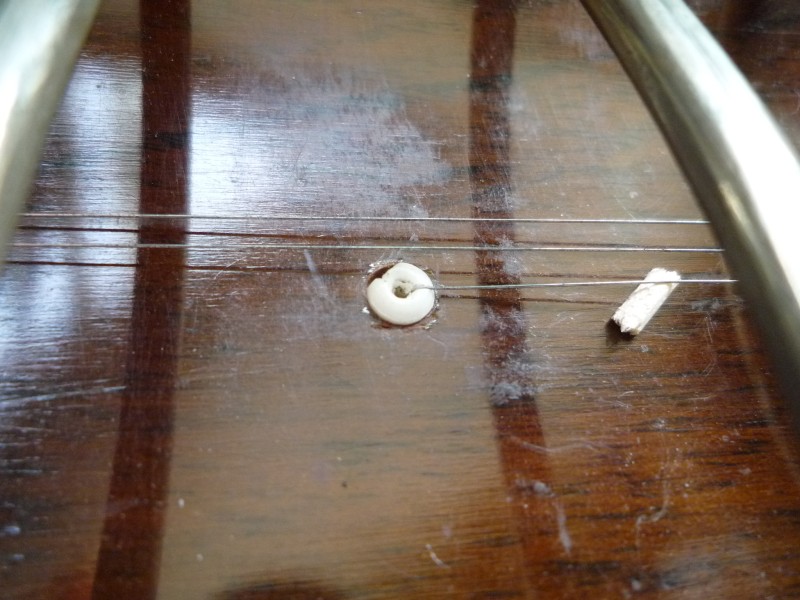

Kartar Chand & Hari Chand add a special tiny tarav mogara bridge to support the string.

Hiren Roy & Barun Roy and many others install a differently shaped mogara.

2 Replies

Steel Tarav Mogara…?

Sitar Factory Posted on Monday, 29 September 2008 by AnandaSaturday, 1 May 2021

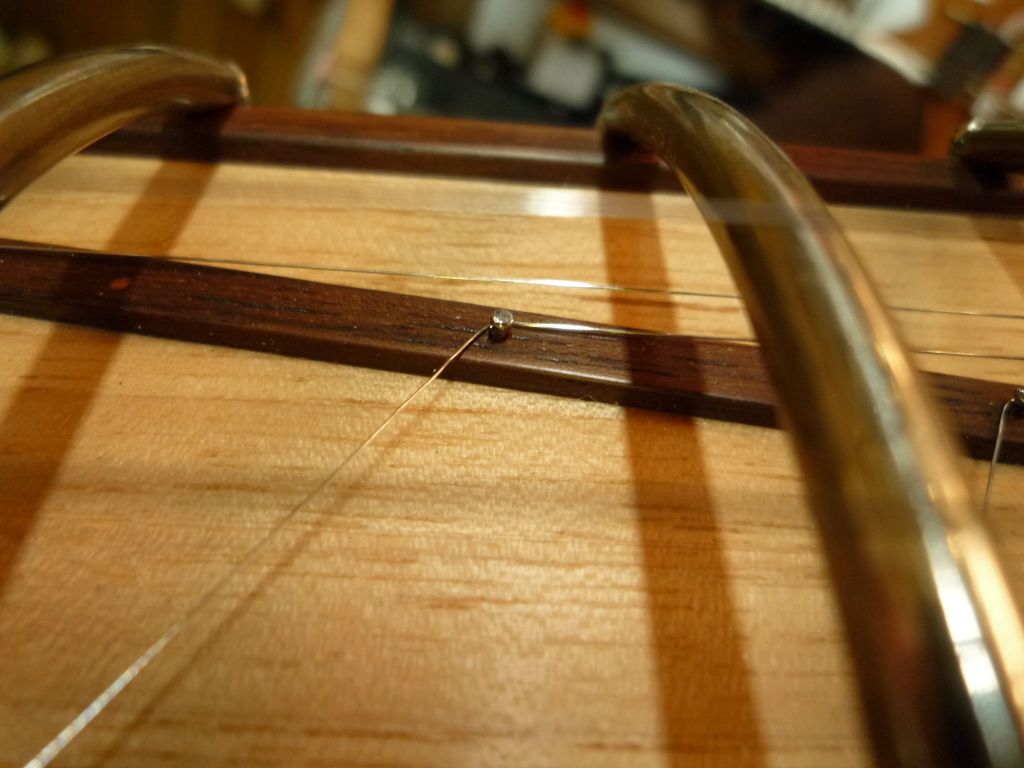

On the SAS-01 I use ordinary mini steel nails (diam. 1mm / lenght 8mm) as tarav mogara. They sound very good at the moment but I think this can be improved one day. But how? By bone, or horn, or… ? Anybody a suggestion ?

Posted in making | Tagged fusion, JazzSitar, SAS, tarav | 3 Replies

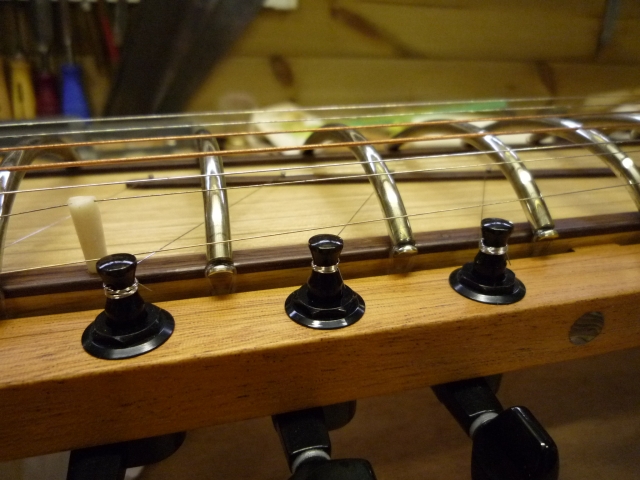

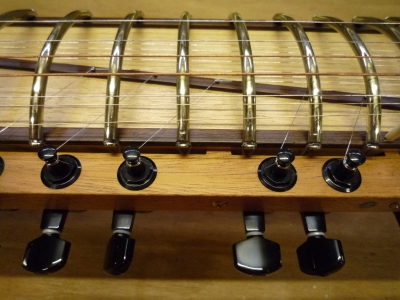

SAS-01, with taravbar

Sitar Factory Posted on Sunday, 17 August 2008 by AnandaSaturday, 1 May 2021

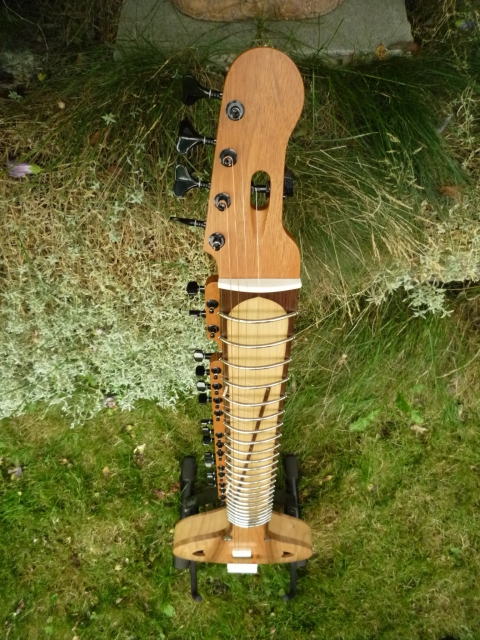

Day 53: Assembling the body after sufficient drying (pardas, cikari- and tarav machine heads, jiwaris & strings).

Day 54: Mounting the cikari pins and strings, and doing jiwari. Mounting the taravs and tarav jiwari.

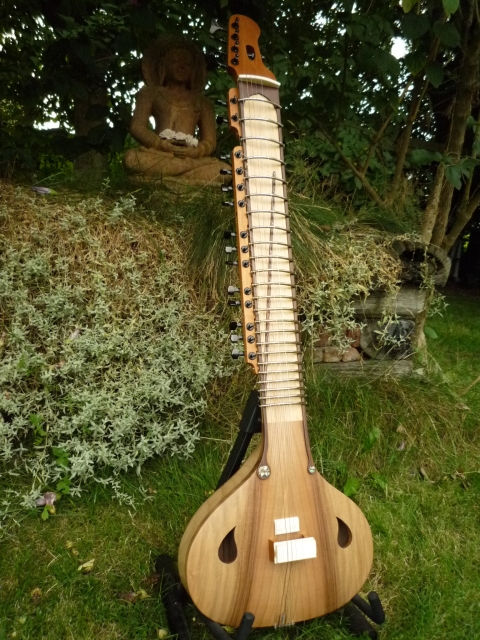

Now this semi-accoustic sitar is ready for a first play. Who wants to … ?

Posted in making | Tagged electric, fusion, SAS, SitarMaking, tarav | 4 Replies

Tarav strip

Sitar Factory Posted on Wednesday, 16 July 2008 by AnandaWednesday, 16 July 2008

Day 50: Mounted all 24 pardas on this SAS-01. It’s a very delicate and time-consuming job: first accurate bending and height adjustment followed by binding the pardas.

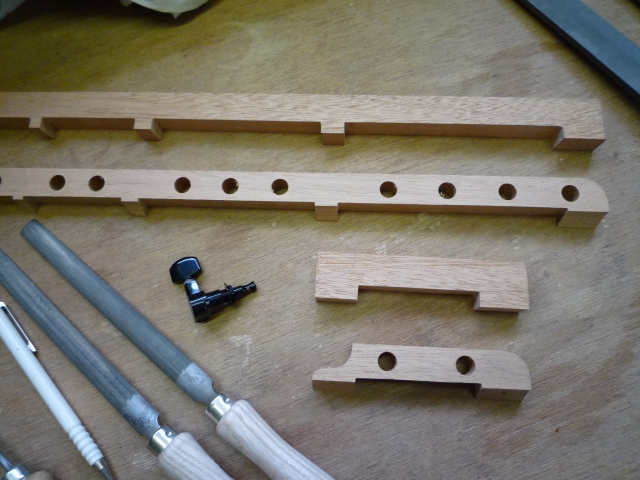

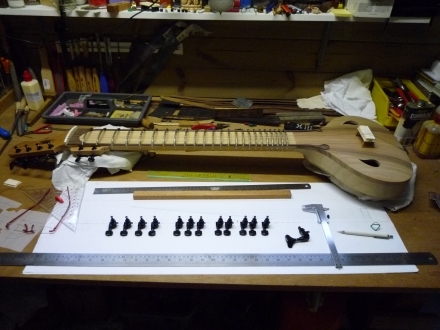

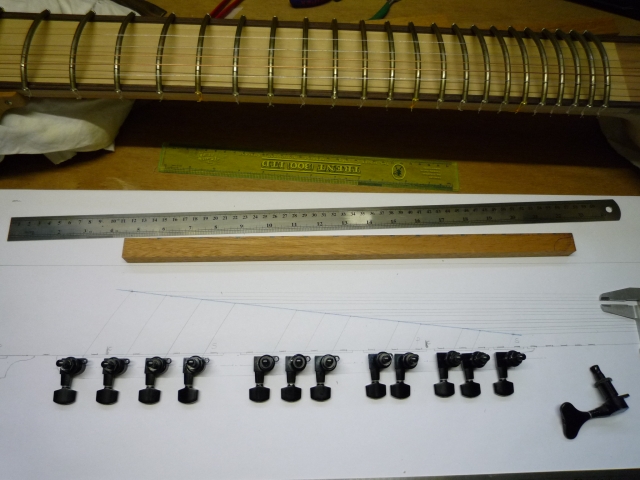

Day 51: After tuning the sitar properly, I put the pardas to their regular position. Then I draw a map, localizing the taravs to help me situating the best position for mounting the tarav’s machine heads. These will be mounted on a mahogany strip, just like the cikari machine heads on the SBS-02.

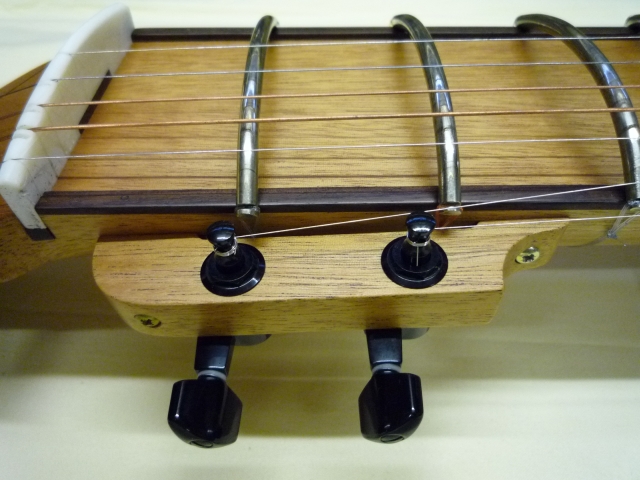

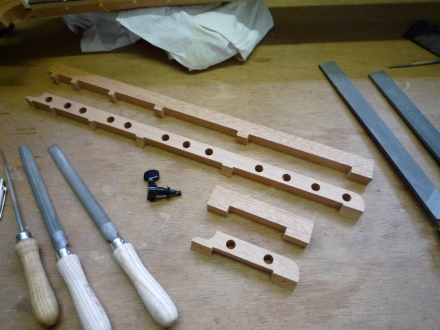

Machine head strips

Meanwhile this sitar is disassembled again to be able to apply the finish.

Posted in making | Tagged SAS, SitarMaking, tarav | Leave a reply
