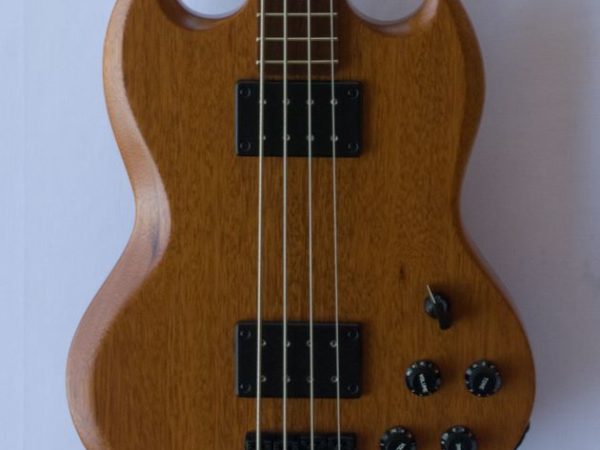

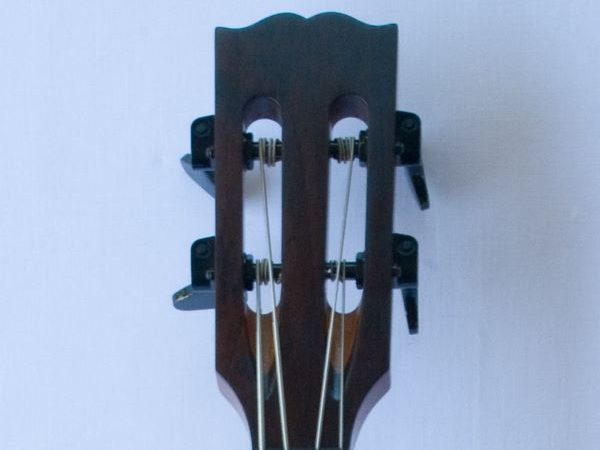

During my learning school at Centrum voor MuziekinstrumentenBouw, CMB, at Puurs, Belgium, in 2000 I made a Gibson EB-3L replica. I’ve choosen this electric bass because of the unique and original “slotted head” construction which I applied later to my new style sitars SAS-01 etc…

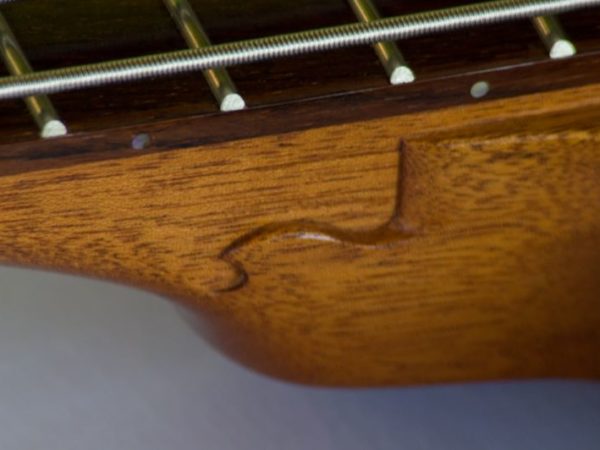

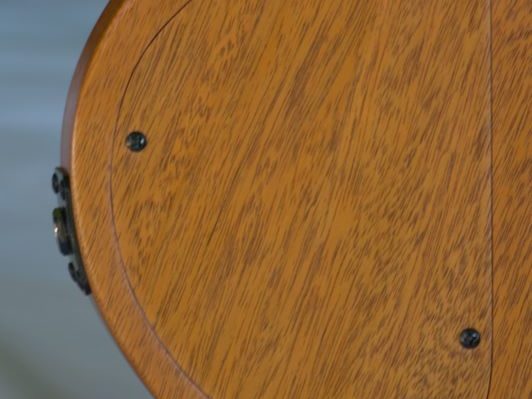

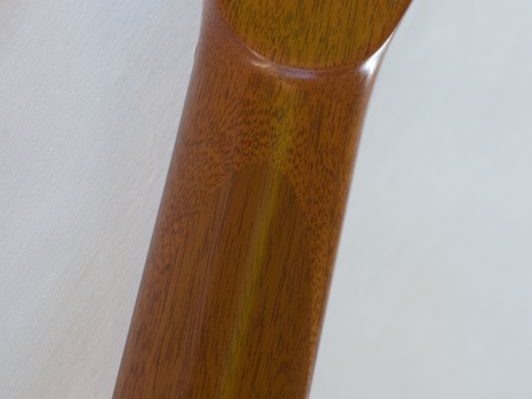

This guitar has a Honduras mahogany body and neck with Indian rosewood fretboard and head top plate.
Because the original instruments sound wasn’t very inspiring I decided to replace the pickups with some modern and better performing types made by Di Marzio. Their DP145 Will Power™ neck model is very deep-sounding with great low-end definition. Its dimensions are the same as the original replacement Model One™, but it’s a little louder and fatter-sounding, and pole piece spacing is slightly wider for better string alignment with long-scale basses.
Click here to look at some nice pictures made by Luc De Gezelle.
German stringmaker Pyramid has made some special strings, suitable for “electric” (working with electro-magnetic pickup) full size sitars. They make brass wound polished strings for laraj & kharaj 0.55mm (.021) & 0.74mm (.030) and heavy kharaj 0.92mm (.036). And also brass coated steel wire ranging from 0.18mm (.007) to 0.38mm (.015), good for all other strings such as tarav, cikari, baj and jora tar.
I ‘ve ordered and tried the brass flatwounds for laraj & kharaj and brass coated steel wire for jora on my SAS-01 and SAS-02. The brass flatwounds sound very good, brilliant and accurate but a little more harsh than I am used with the bronze flatwounds from India. They are also not as flat as their bronze indian brothers. But the latter are very fragile. The bronze winding breaks easily while playing heavy meend. I don’t know (yet) how strong the pyramids are. The brass coated steel wire behaves quite similar to the full steel jora string. There is a noticeable improvement to the jora tar tuning problem but the overall sound volume remains the same. I had hoped that by using this brass coating the volume difference between baj and jora tar would become less. There is only a very small improvement. The only solution seems to be the fitting of a thinner jora string. Or, maybe someone can make me some bronze coated steel wire instead of brass coated ??
Many sitars suffer from an improper intonation. Mostly affected are jora and laraj kharaj strings. If you are lucky you should be able to play comfortable on the first couple of frets only. After this, immediately pulling meend to correct the tone becomes a must. It is almost a part of the advanced sitar learning process…!!?
On my electric sitars only steel strings are used. Bronze flatwounded strings for laraj & kharaj and plain steel strings for jora. And this thick steel jora again causes some weird troubles. The intonation is far from correct and has this strange behaviour that the tone is too high rather than too low. This means that pulling meend to correct the difference is extra complex. One can only play a higher note on the particular parda…!!
The solution is to shorten the jora string. This is done by adding an intonation block to the tar daan under the jora. This block needs to be made at a particular lenght. My good friend and fine sitarplayer Bert Cornelis helped me to tune the sitars very accurately. Then we temporarily fixed a small piece of bone under the string to immitate the intonation block and as such we were able to measure its desired lenght. SAS-01 needs 10mm of intonation block lenght, SAS-02 only 6mm and SBS-02 12mm.

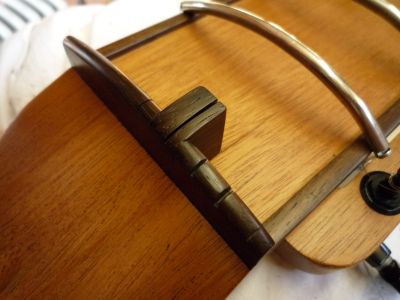

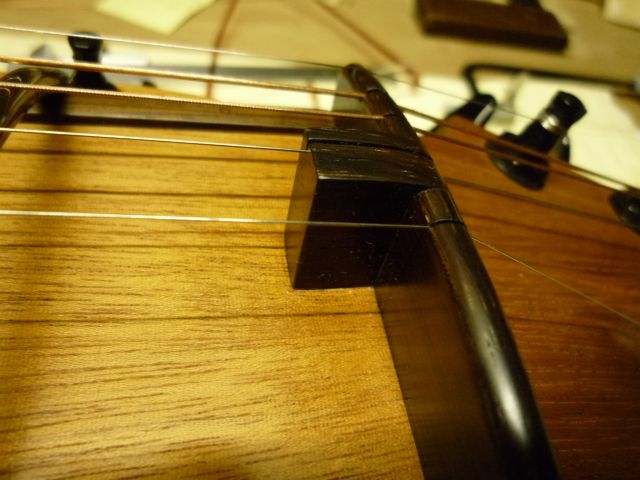

Day 68 & 69: The intonation block on the SBS-02 and SAS-02 is made out of a piece of extra hard and strong indian rosewood. The block is inserted into the tar daan and is armed with a short pin into the head to make sure it will not become loose when playing meend on the jora.

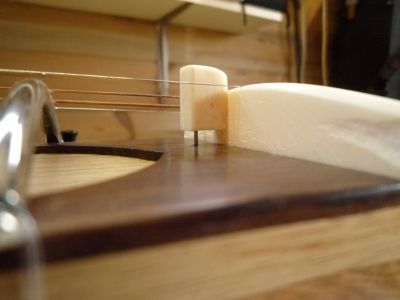

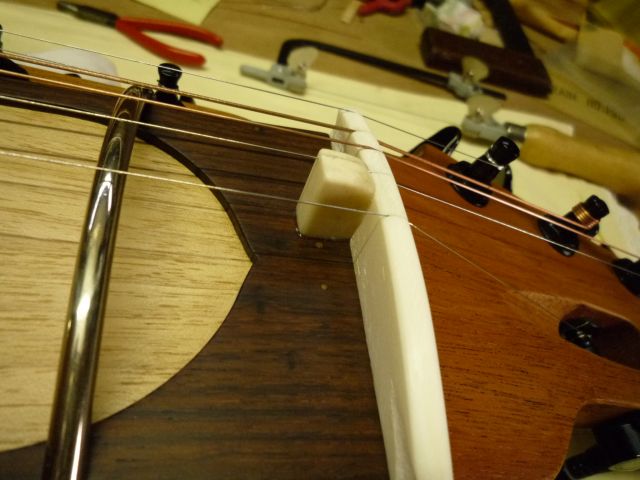

On the SAS-01 a small piece of stagg horn is used. It is also armed with a steel pin into the head’s wood. Now these sitars are very comfortable playing on the jora without hardly any correction up to reaching the middle SA parda.
Very soon after finishing the first 2 sitars (SBS-02 & SAS-01) I encountered a strange problem. The jora tar, which is now a steel string showed a strange behaviour. After tuning the strings properly and playing a meend on the baj tar (playing string) the jora sensitively raises in pitch while all other strings nicely regained their original pitch. Very rarely I ‘ve been noticeing this behaviour on traditional sitars before, but always it was much less pronounced and many times it disappeared after some time playing. Yet this time the jora raised almost a quarter tone on the SBS-02, and even after some days playing this inconvenience remained.
After a couple of sleepless nights I found out that it was the main jiwari which caused this malfunctioning. While pulling the playing string down (playing meend) the whole body bends (like a bow) and the main jiwari comes forward. All the other strings loosen their pitch (going low). Releasing the playing string from its meend position makes the instrument go back to its original shape, thus the jiwari is being pushed backwards to its original position. At this moment, the jiwari is also pulling all the strings backwards. But because the steel surfaced jora string is more rough and doesn’t have the same lubricating behaviour as a bronze string (original jora and laraj kharaj) the result is a considerable raised pitch.
The solution to this is very simple: carbon. With an ordinary pencil, I applied some carbon to the surface of the jiwari, straight under the jora tar’s position, and the problem was solved. But.., not for 100%. Still I noticed a very slight mismatch. Here and now the cause was quickly found: also the upper tar daan is having some difficulty to restore the steel jora tar to its original tension. Applying some wax to the contact surface between the jora string and the tar dan made an end to this jora tar tuning phenomenon.

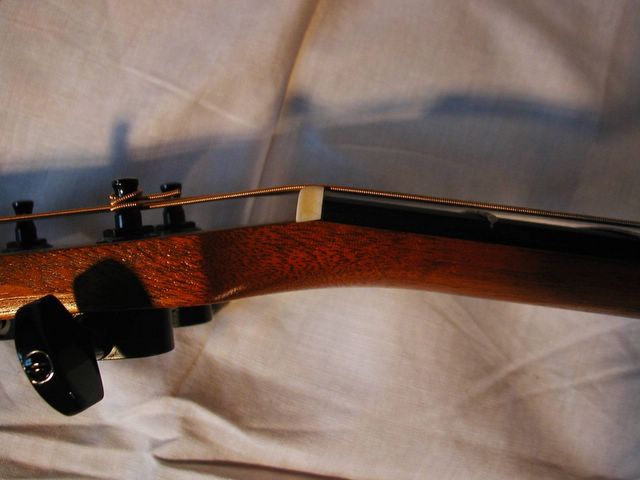

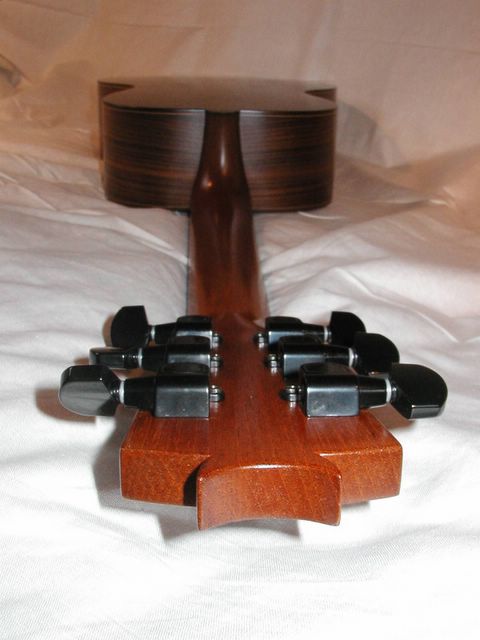

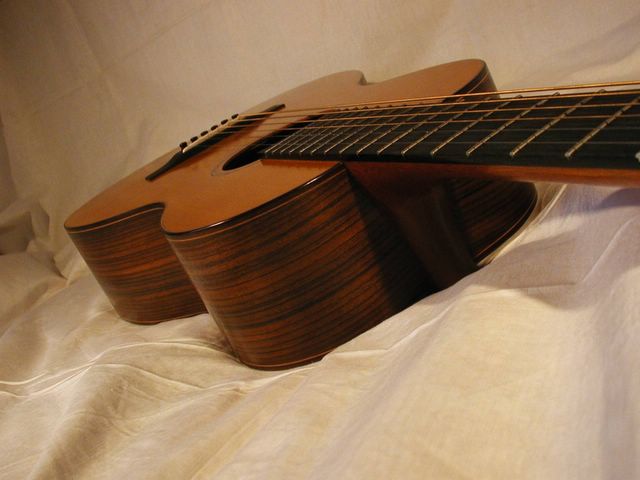

Found some pictures of my Martin 01, which I made at CMB, Puurs, 1998 – 2000.

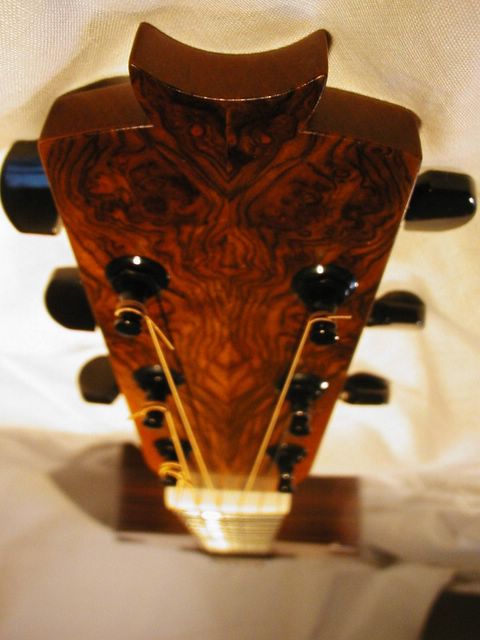

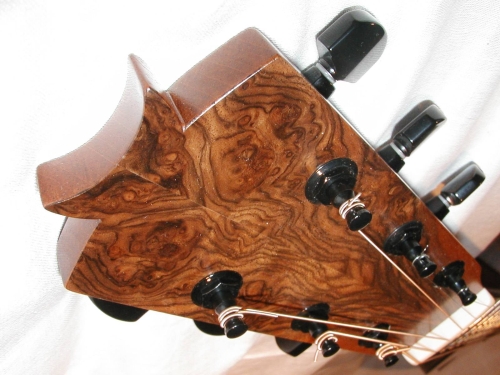

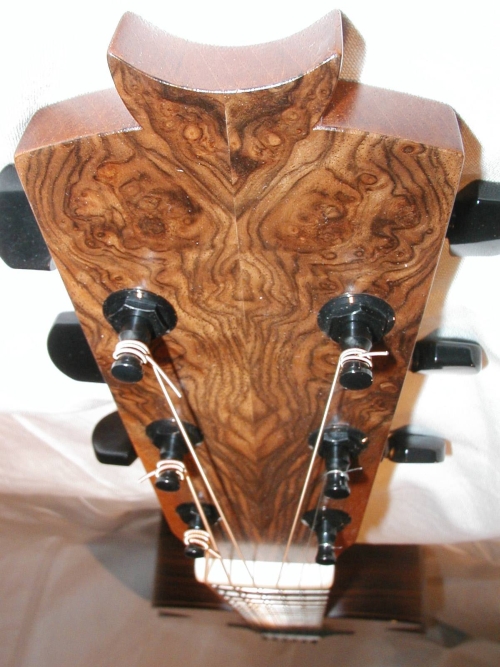

The guitar has a beautiful head of walnutroot-veneer.
To see a few more pics, click here …

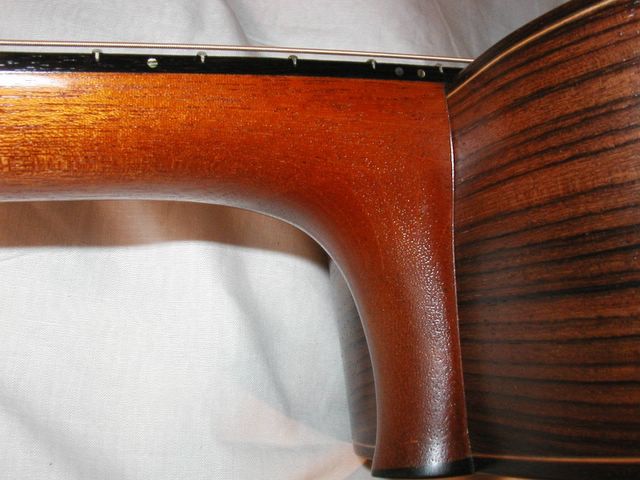

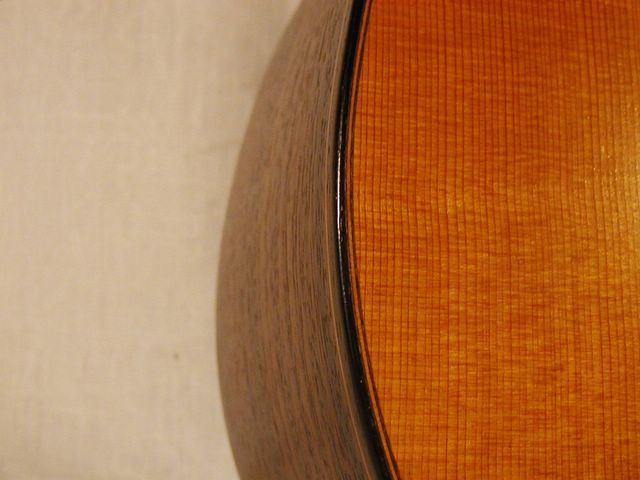

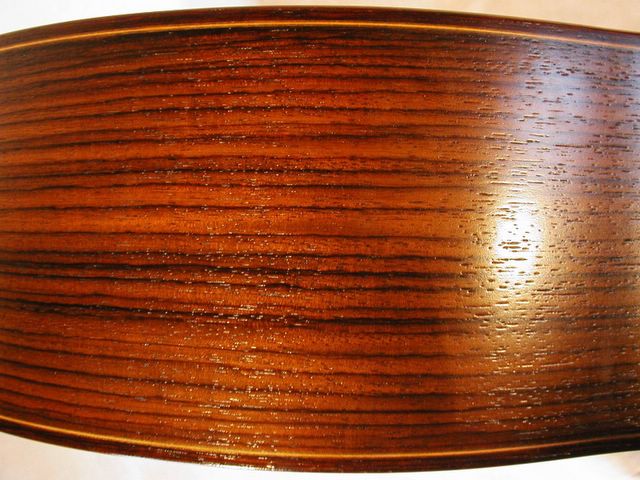

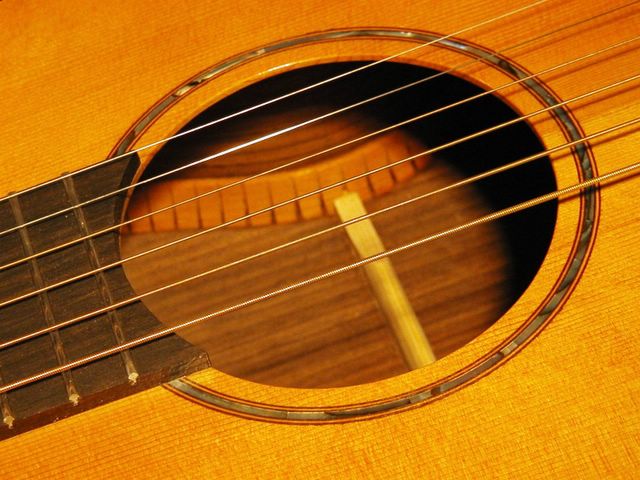

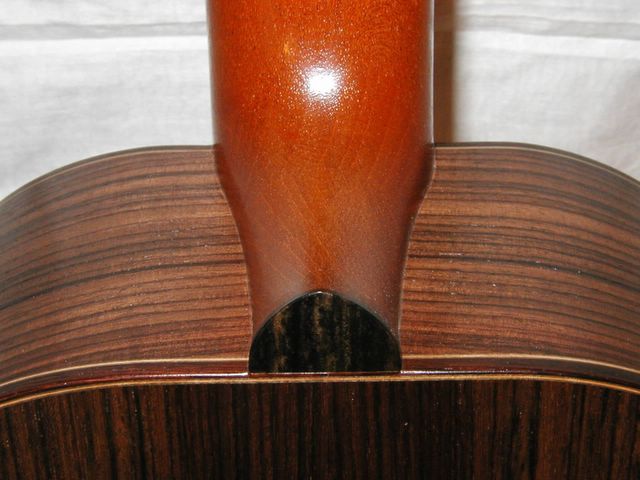

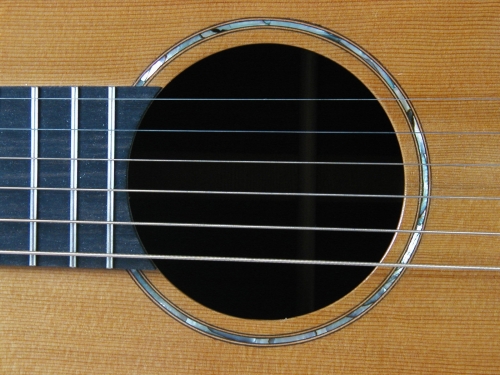

As it was my first own built acoustic instrument, it took me 2 years to finish it. Body made out of rosewood, cedar top plate, Honduras mahogany neck and fretboard in ebony. Rosette with abalone…
